RapidMAX® range: Plus and SS
High-performance doors for industrial, commercial and hygiene-critical environments
The Australian-designed and manufactured RapidMAX® range delivers strong performance, durability and efficiency across demanding applications. Engineered with TOUGHFLEX® door curtain technology, a compact guide design and German-engineered GfA Safedrive® motors, RapidMAX® doors offer quiet operation, fast opening speeds and effective environmental sealing to help reduce energy loss.
Two models are available to suit different requirements:

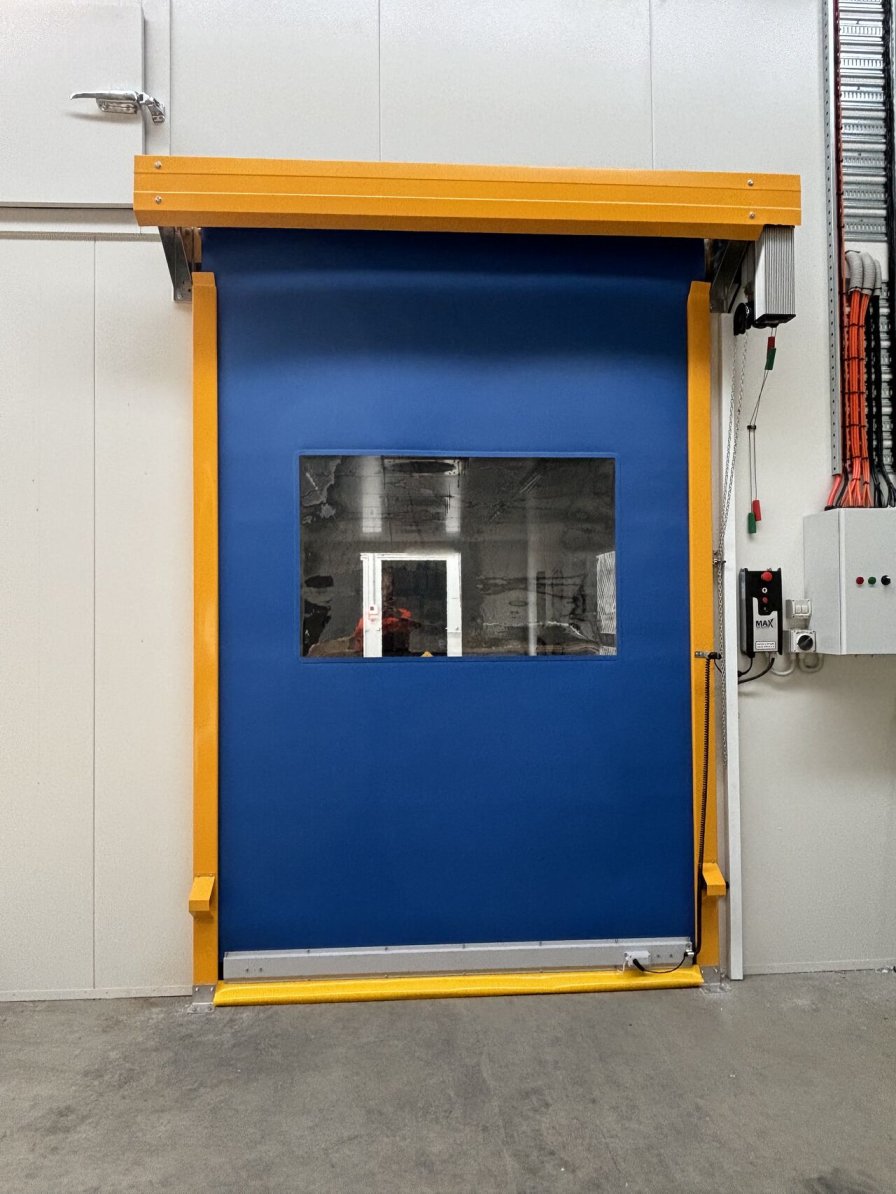

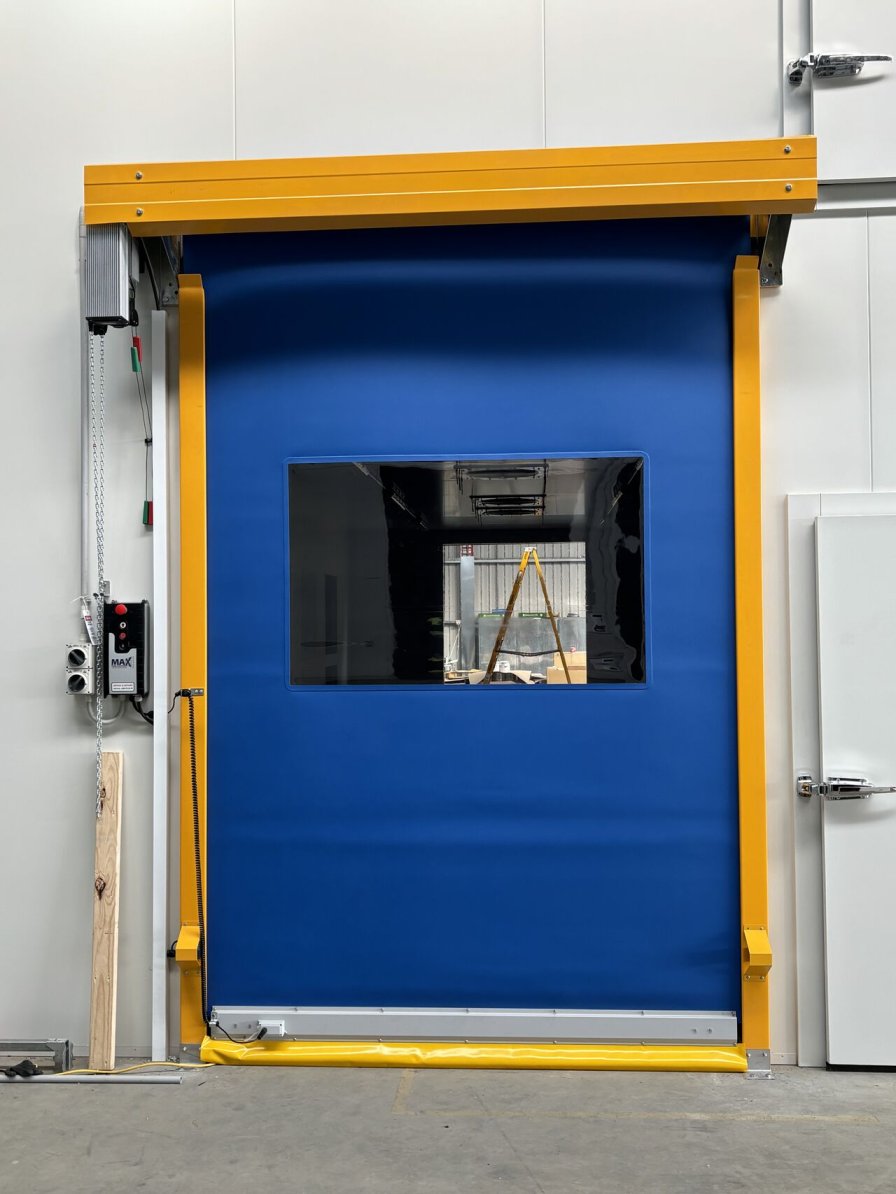

- RapidMAX® Plus, designed for general industrial and commercial applications

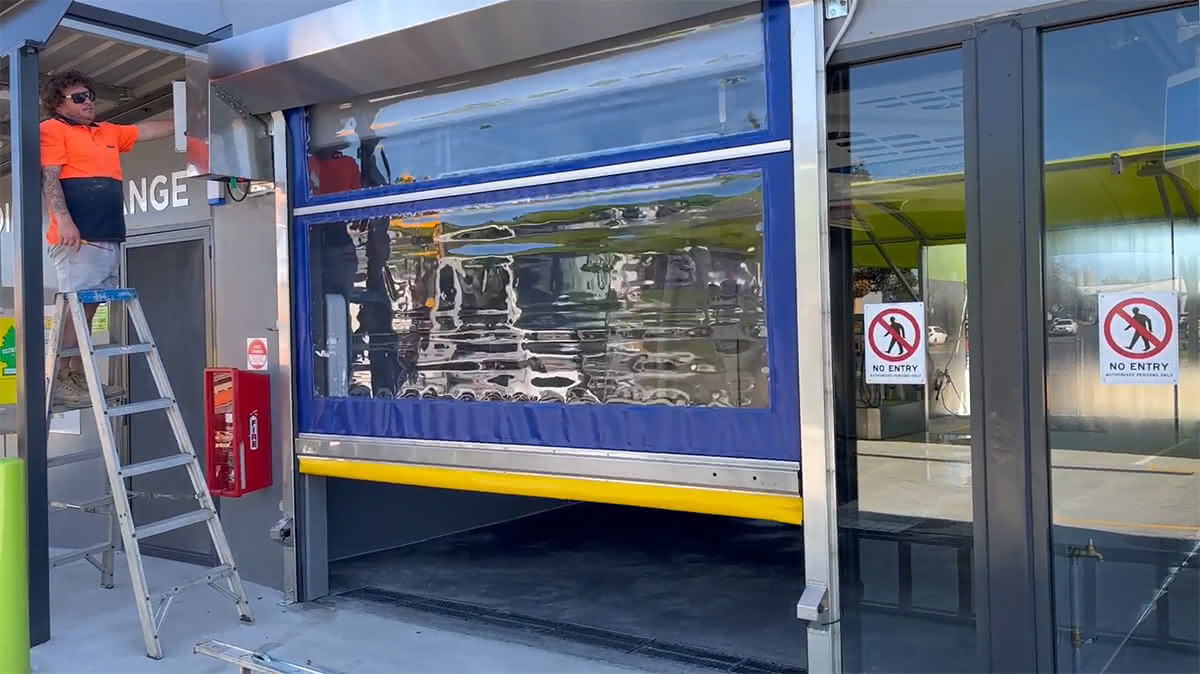

- RapidMAX® SS, constructed in stainless steel for hygiene-sensitive and corrosive environments
Key Features
High Speed
High Cycle Performance
Heavy Duty
Sensors Safety
Specifications Summary
| Feature | RapidMAX® Plus | RapidMAX® SS |
|---|---|---|
| Application | Internal / external industrial and commercial | Internal – food-safe, hygiene-critical and corrosive environments |
| Max Width | 4,000 mm | 4,000 mm |
| Max Height | 5,500 mm | 5,500 mm |
| Opening Speed | Up to 2.5m/sec | Up to 2.5m/sec |
| Curtain | TOUGHFLEX® 2350gsm with full-width vision panel (std) or no vision (opt) | TOUGHFLEX® 2350gsm with full-width vision panel (std) or no vision (opt) |
| Door Frame / Fascia | Powdercoated steel | Stainless steel 304 standard (316 optional) |
| Top Roll Cover | Fascia standard/ hood optional | Fascia standard/ hood optional |
| Top Roll Tube | Galvanised steel | Galvanised steel (316 stainless optional) |
| Drive System | GfA Safedrive® IP54, 240V single phase | GfA Safedrive® IP65, 240V single phase |
| Control System | GFA TS971 IP54 (std), TS971-XL IP65 (opt) | GFA TS971 IP54 (std), TS971-XL IP65 (opt) |
| Safety | Bottom beam edge, optical sensor, PE beam, integrated safety brake, emergency stop, manual chain override | Same as Plus, with optional 1800mm light curtain and optional manual crank |
| Crash System | Knockout with manual reset | Knockout with manual reset |
| Wind Load Rating | Gusts >30km/hr (Std) >72km/hr (Opt) | Gusts: 300 Pa (Class 1, EN 12424) |
| Applications | Warehouses, logistics hubs, manufacturing, commercial sites | Food processing, pharmaceuticals, hygiene- sensitive or corrosive sites |
Additional notes
- Antistatic properties: The electrical resistance of an internal fabric or intermediate layer is < 3×10^8 phms. Measurement according to ISO 21178.
- Concerning the extraction behavious: conforms to the requirements of the FDA (U.S. Food and Drug Administration) for the transport of unpackaged foodstuffs.
