PanelMAX® range: 40, ECO40 and 80
Insulated sectional doors – 40 mm, ECO40 & 80 mm panels
The PanelMAX® range provides insulated sectional doors designed for low to medium cycle applications where insulation, security and safety are key considerations. Available in 40 mm and 80 mm panel thicknesses, both models feature full perimeter sealing to support effective temperature control and reduced energy consumption.
Choose PanelMAX® 40 for reliable everyday insulation, or PanelMAX® 80 for enhanced thermal performance in more demanding temperature-controlled environments.
Key Features
High Speed
Insulated
Thermal
Sensors Safety
Specifications Summary
| Feature | PanelMAX® 40 | PanelMAX® ECO40 | PanelMAX® 80 |
|---|---|---|---|
| Application | External /Internal | External /Internal | External /Internal |
| Max Width | 6,000 mm (other sizes upon request) | 4,000 mm (other sizes upon request) | 6,000 mm (other sizes upon request) |
| Max Height | 6,000 mm (other sizes upon request) | 4,000 mm (other sizes upon request) | 6,000 mm (other sizes upon request) |
| Opening Speed | Up to 0.18 m/sec | Up to 0.18 m/sec | Up to 0.18 m/sec |
| Closing Speed | Up to 0.18 m/sec | Up to 0.18 m/sec | Up to 0.18 m/sec |
| Panel | Insulated 40 mm Polyurethane panel | Insulated 40 mm Polyurethane ISO- panel | Insulated 80 mm Polyurethane panel |
| Drive System | Manual /Motorised (AC or DC option) | Motorised (Base 50 DC motor) | Manual /Motorised (AC only) |
| Safety |
|
|
|
| Thermal Insulation | U=0.51 /R =1.96 | U=0.51 /R =1.96 | U=0.26 /R =3.85 |
| Acoustic Performance | 25dB 40mm panel |
28dB 40mm panel |
25dB 80mm panel |
| Wind Load | Gusts >120km/h, 700 Pa (Class 3 EU EN12424) | Gusts >100km/h, 450 Pa (Class 2 EU EN12424) | Gusts >120km/h, 700 Pa (Class 3 EN12424) |
| Finish | RAL 9002 (Surfmist) | RAL 9010 (Pure White) | RAL 9002 (Surfmist) |
| Applications | Warehouses, logistics hubs, manufacturing, commercial sites, cold chain logistics | Warehouses, logistics hubs, manufacturing, commercial sites, cold chain logistics. | Warehouses, logistics hubs, manufacturing, commercial sites, cold chain logistics. |
Additional notes

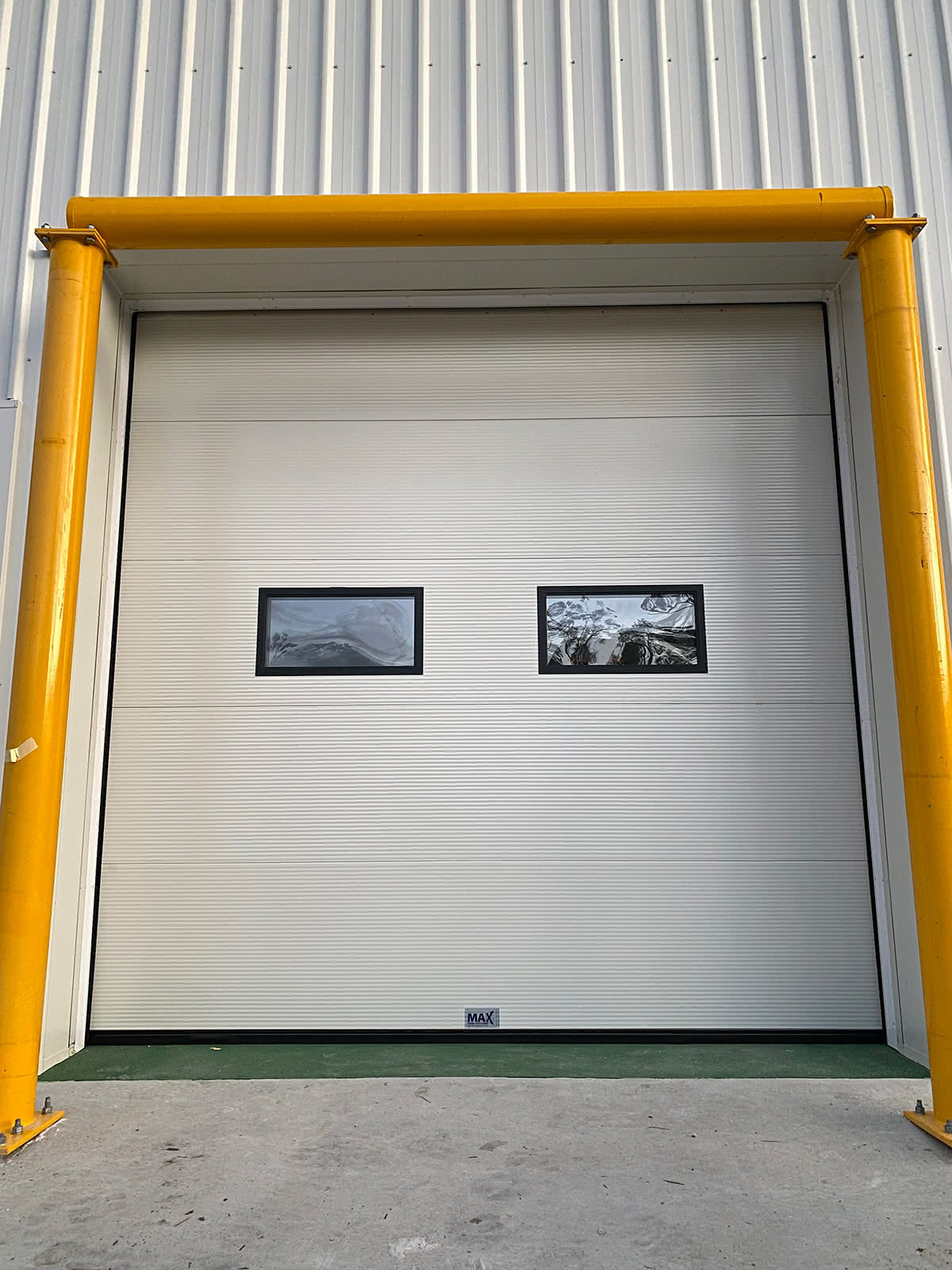

- Double-glazed windows available (40mm panel)
- Triple-glazed windows available (80mm panel)

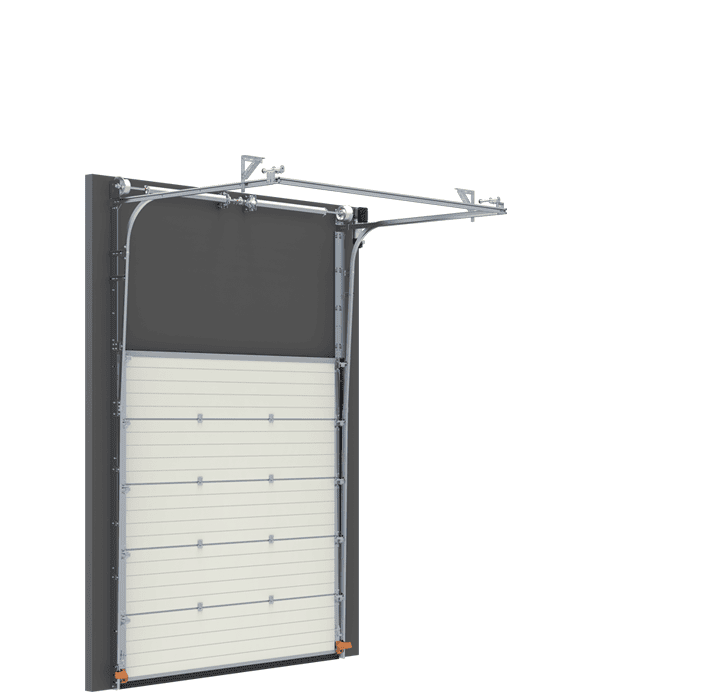

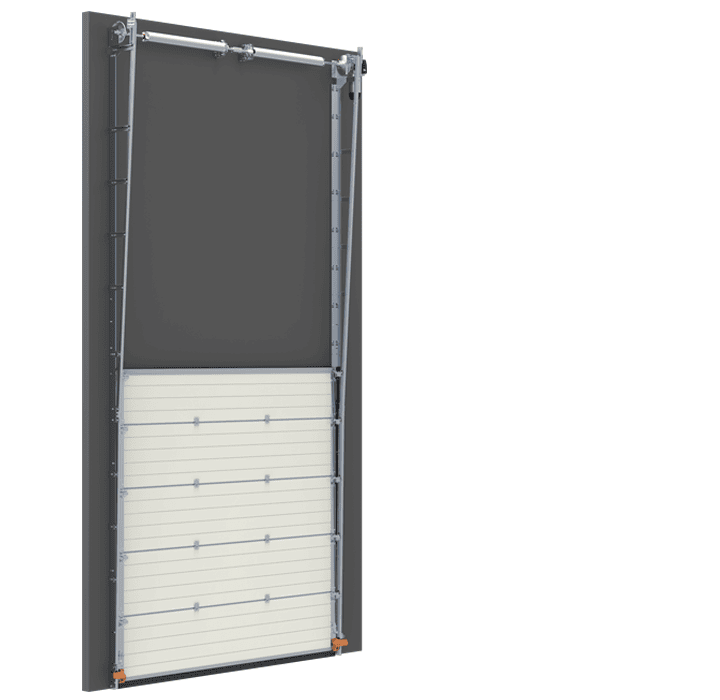

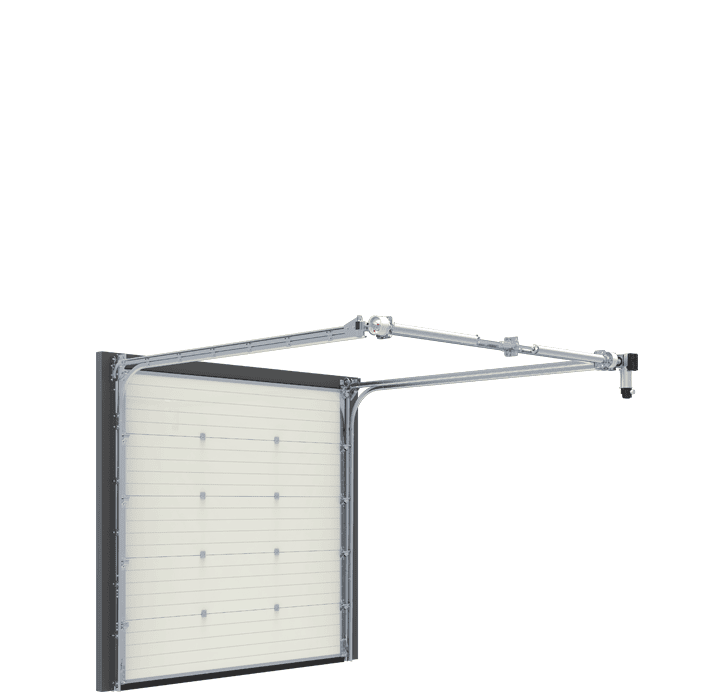

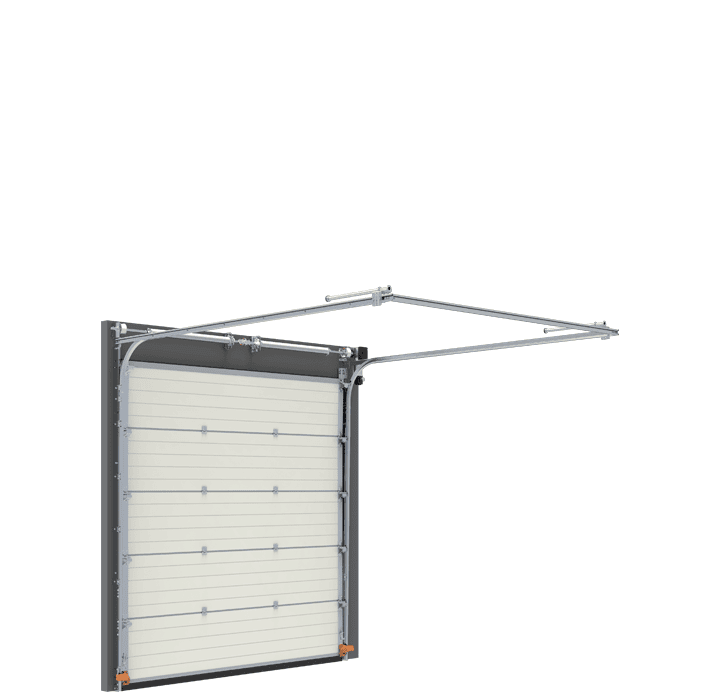

- Multiple track configurations offered
- Custom paint finishes available
Expand
Exceed
NEW Product
PanelMAX® ECO40:
25% improved thermal performance with advanced thermally broken ISO profiles and a high-efficiency DC drive system.
