ShutterMAX® range: 95R, 100D and ISO-SL

High-performance insulated shutters for security, thermal and acoustic control

The German-designed and Australian-made ShutterMAX® range delivers strong security, insulation and operational efficiency. Featuring advanced slat profiles, GfA Safedrive® drive technology and  integrated safety features, ShutterMAX® shutters are suited to industrial and commercial environments requiring thermal control, acoustic performance or reliable high-speed operation.

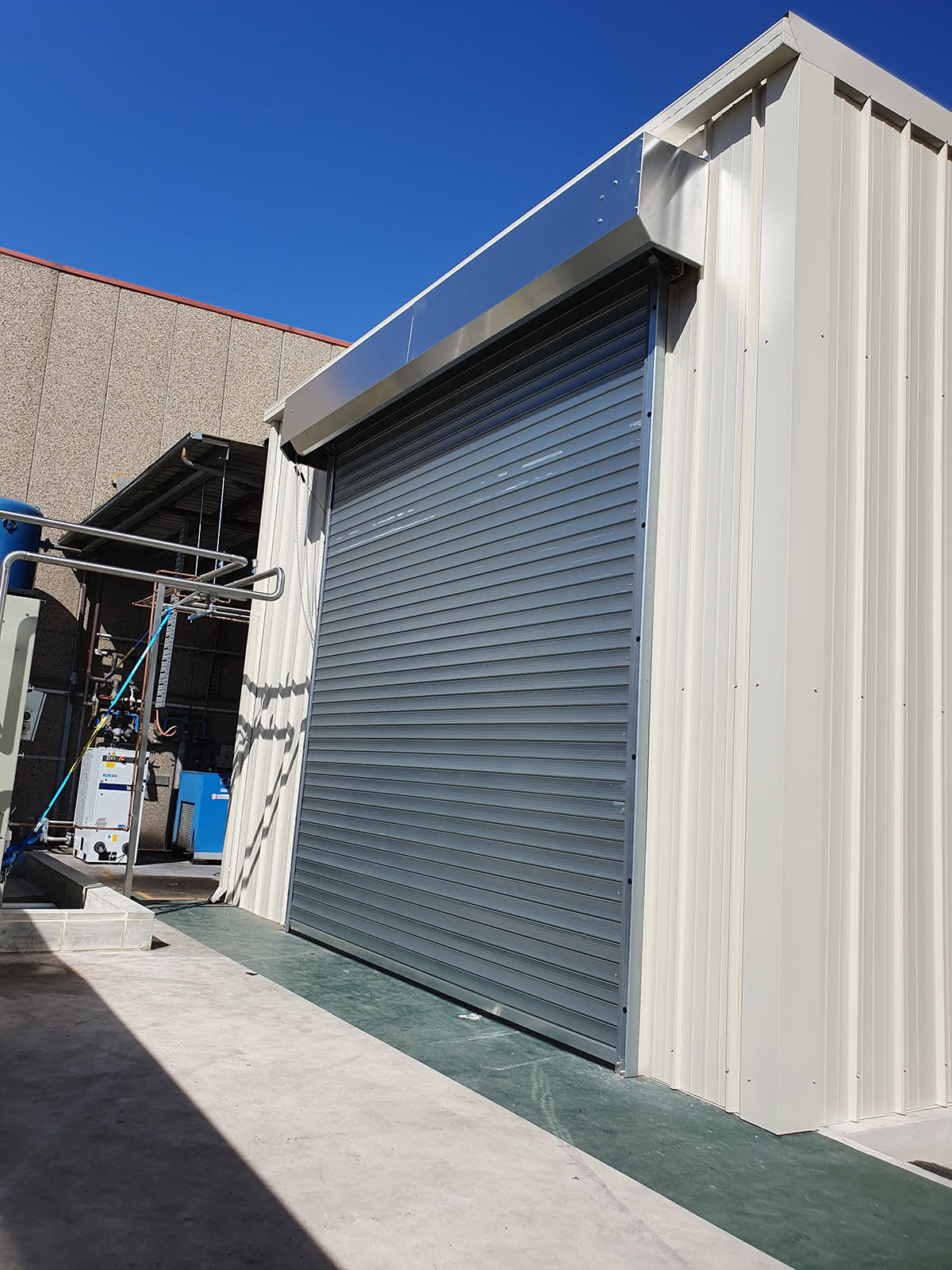

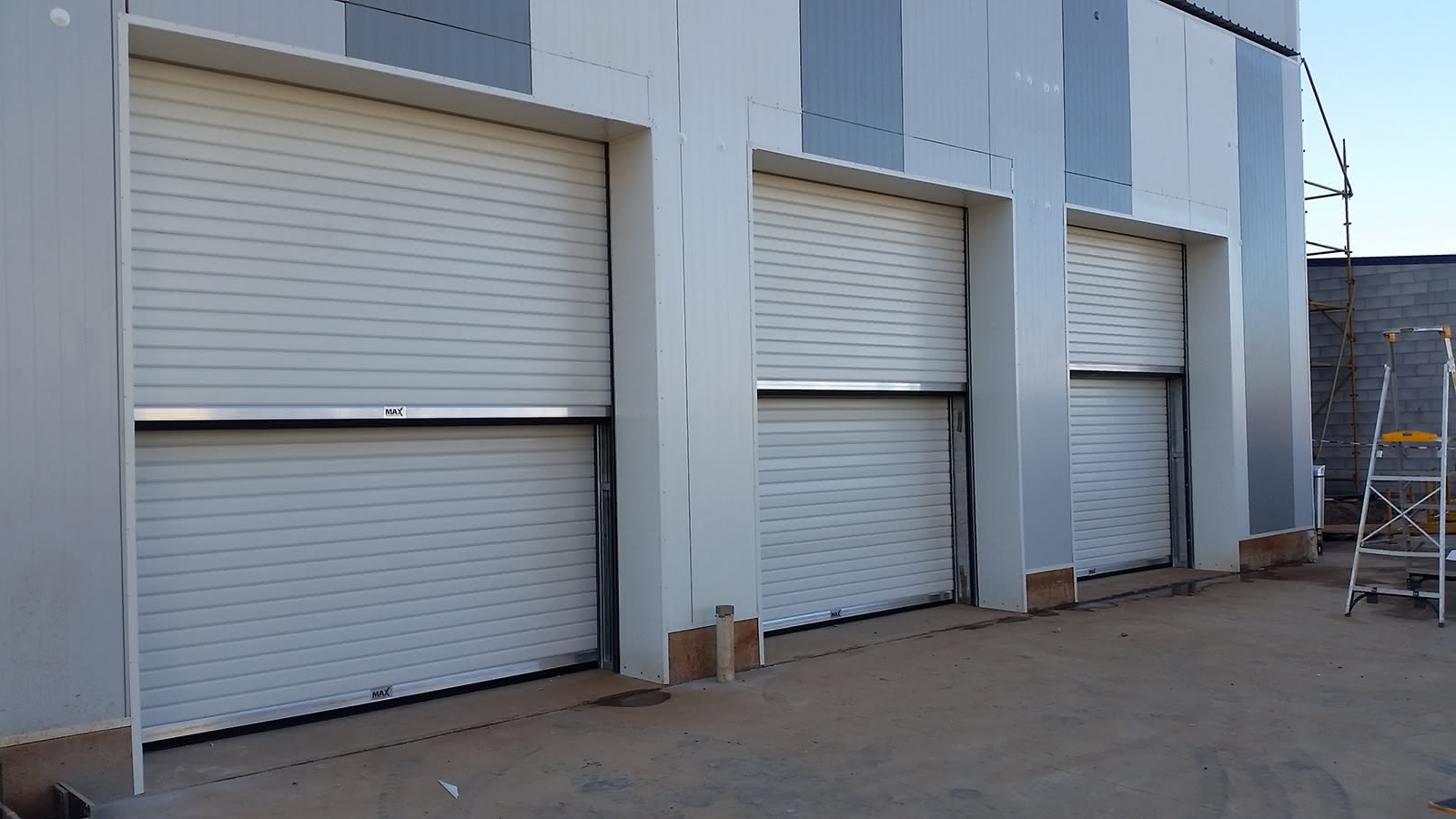

  • ShutterMAX® 95R – a reliable solution for dock doors and warehouses, combining insulation, sound reduction, security and equipment integration.

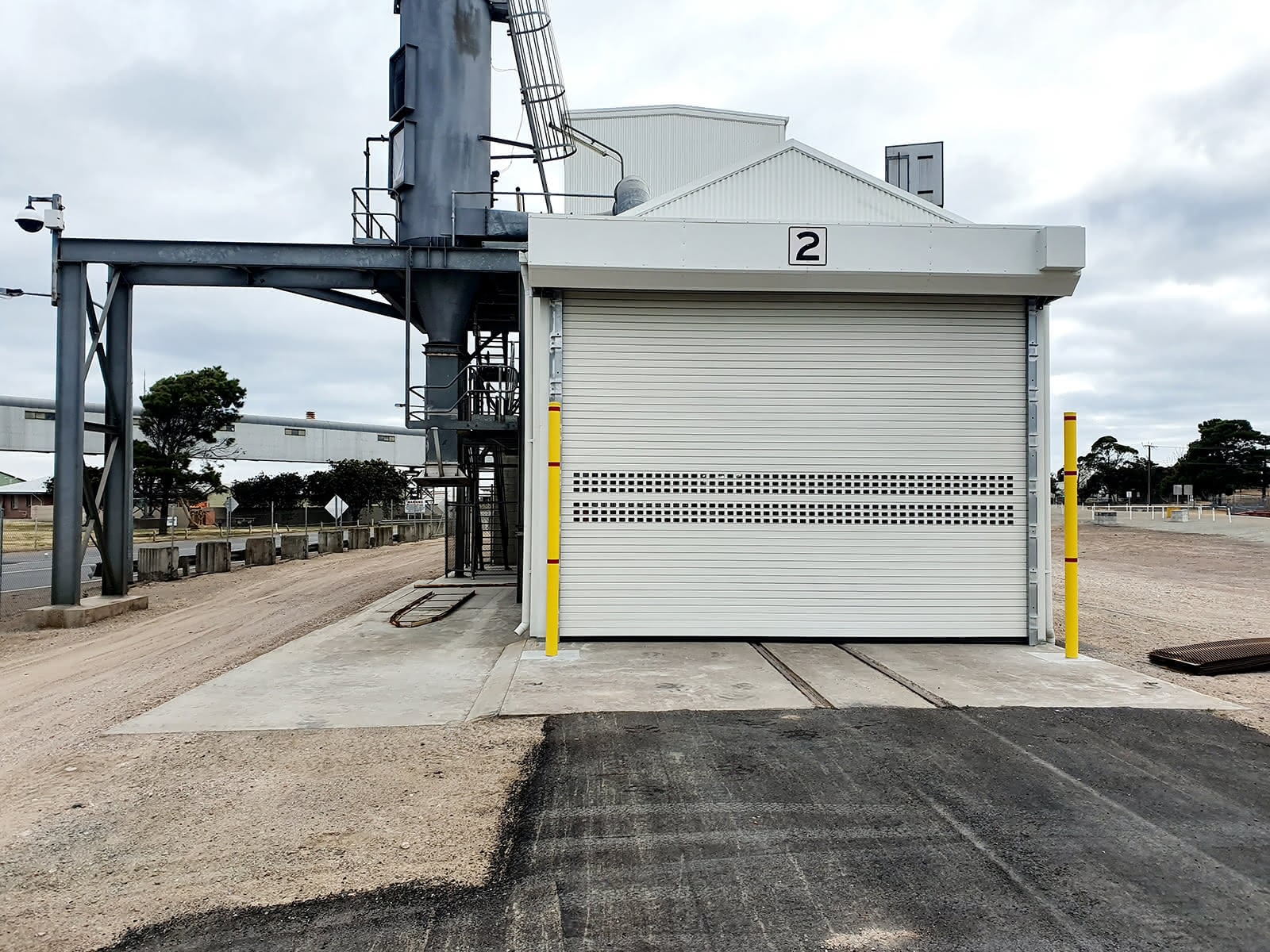

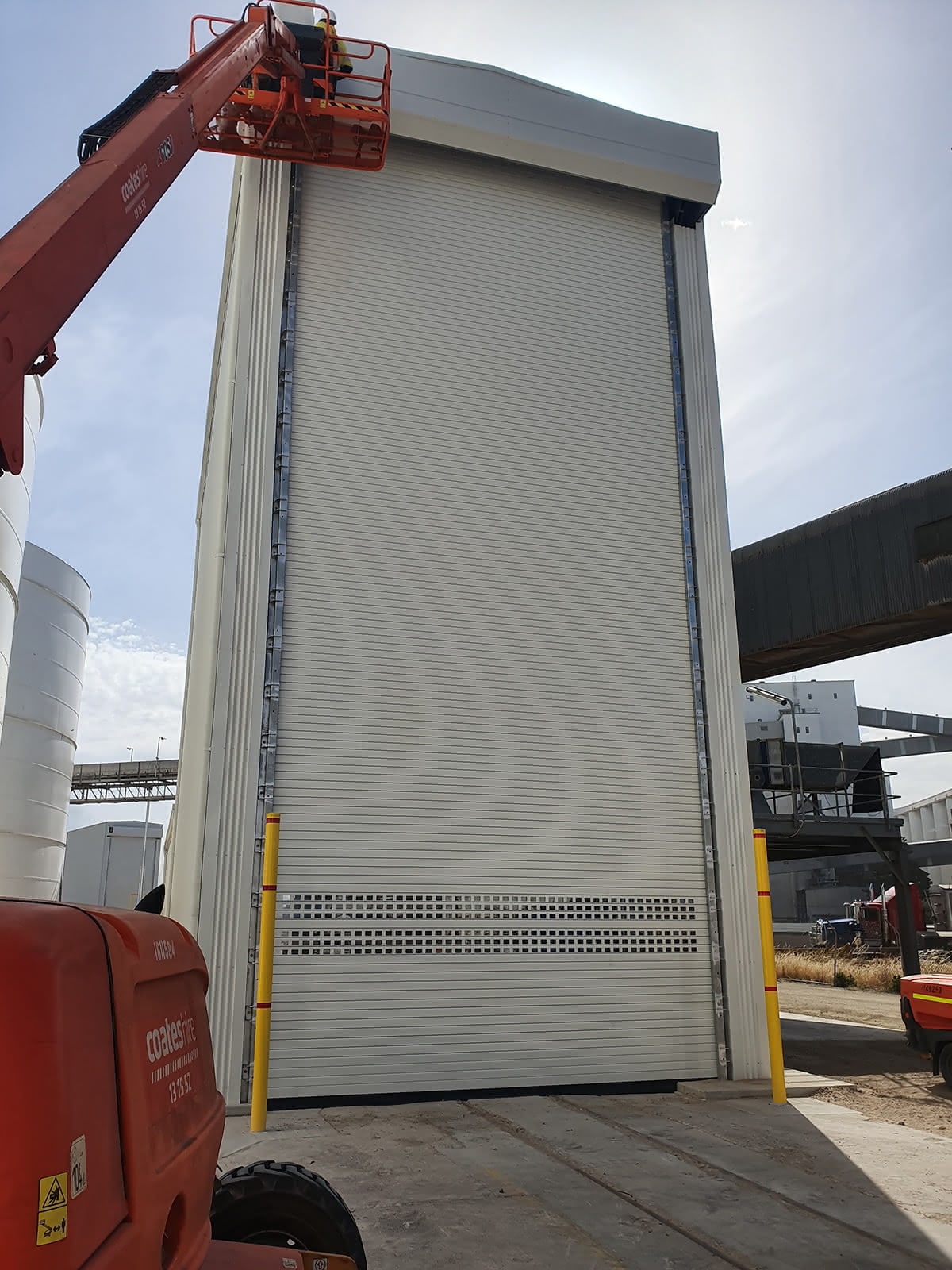

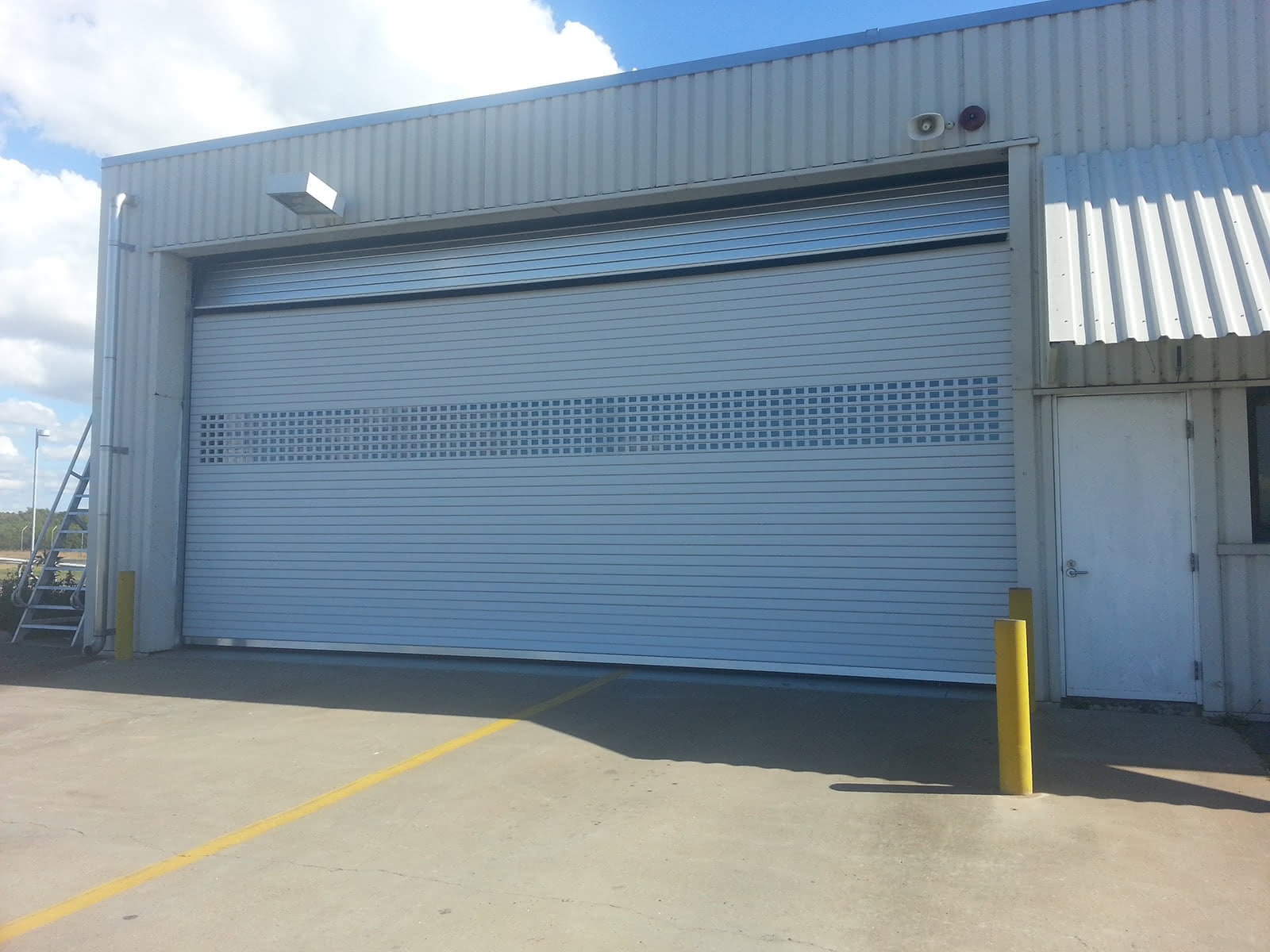

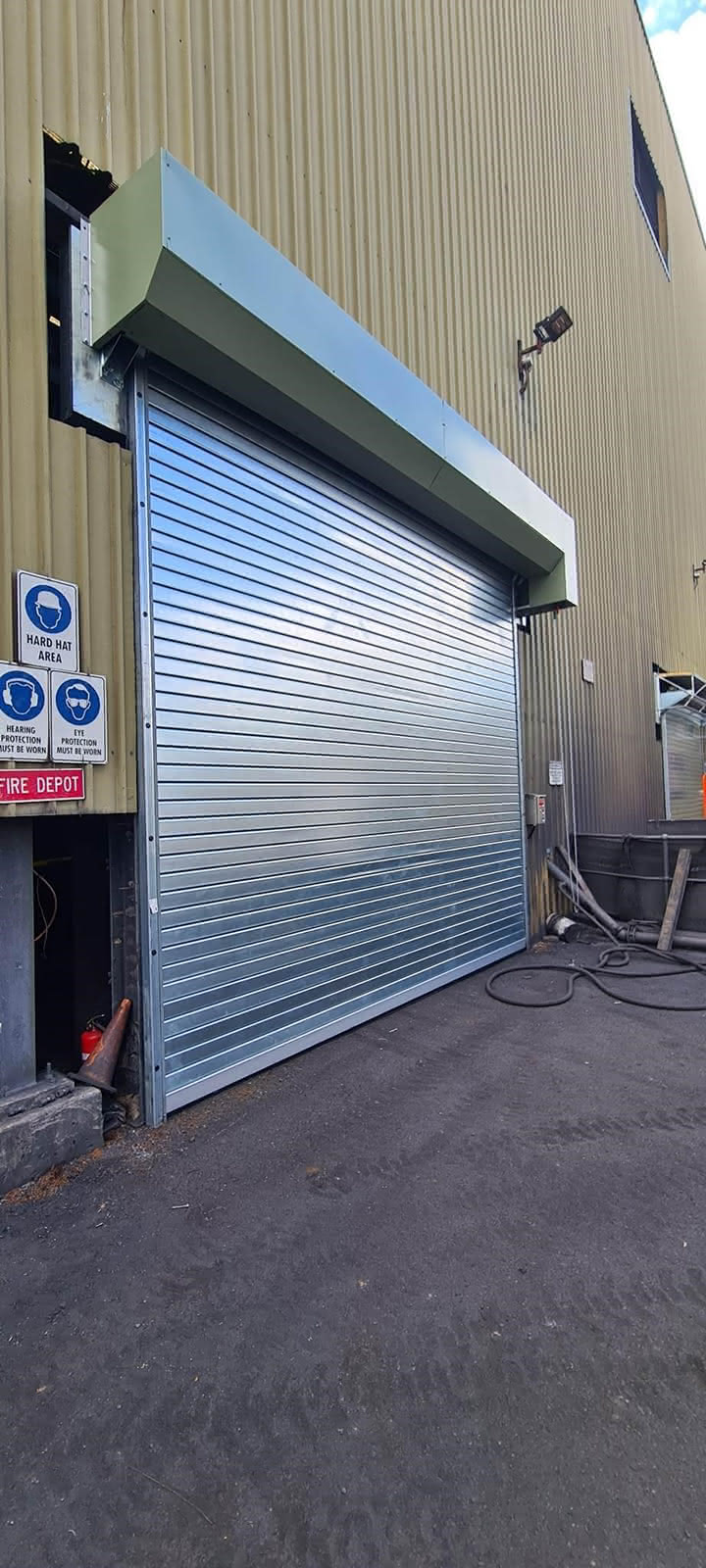

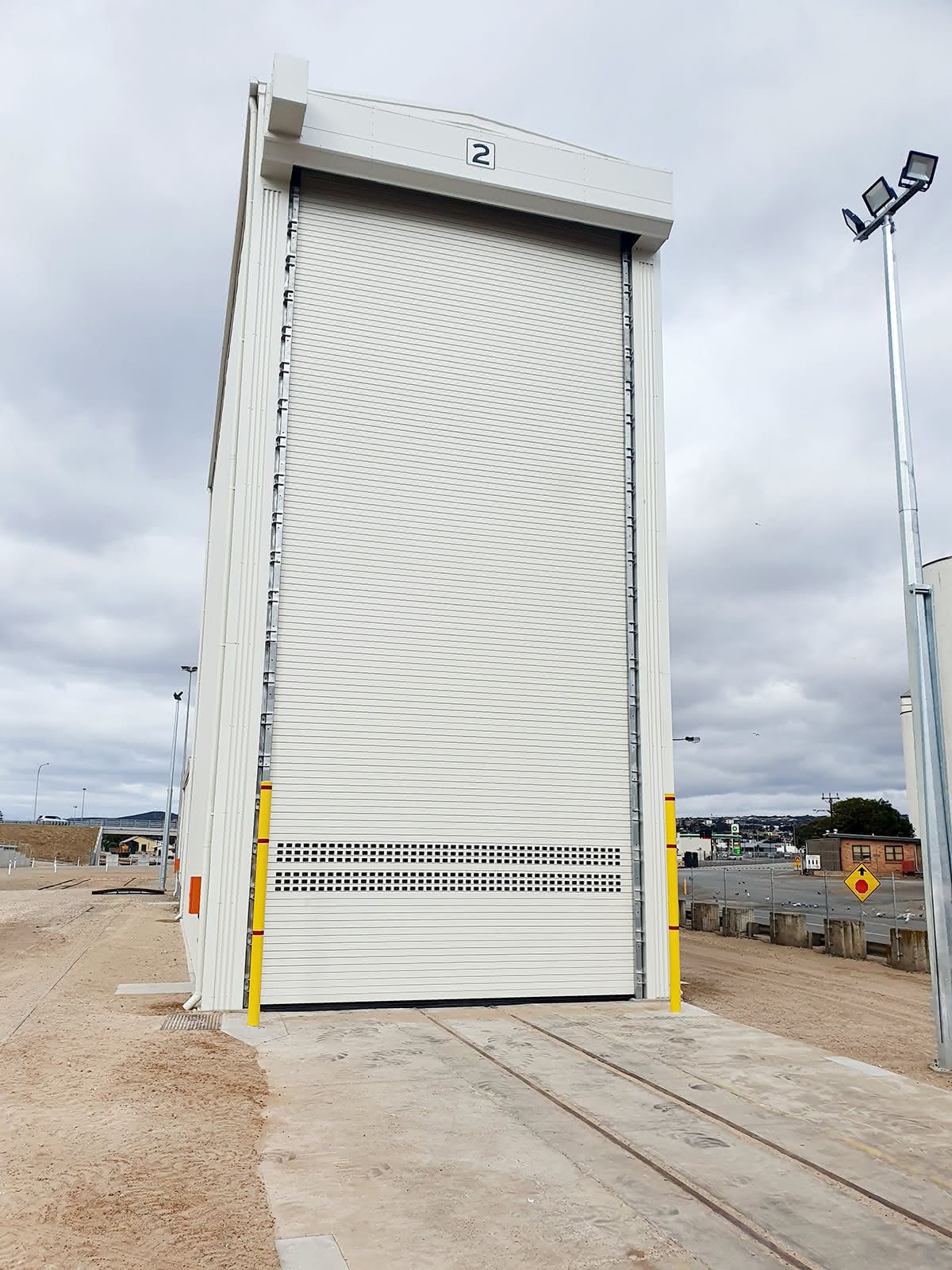

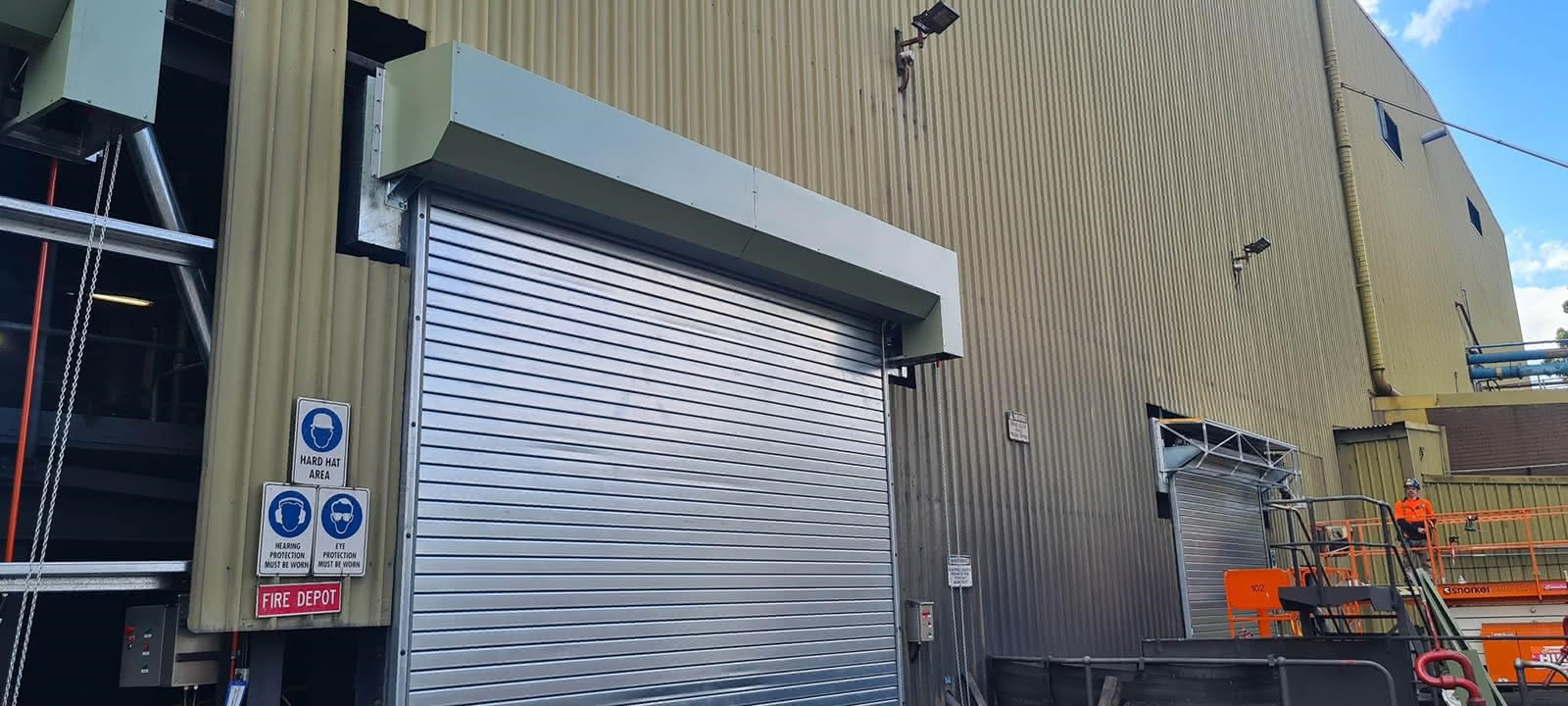

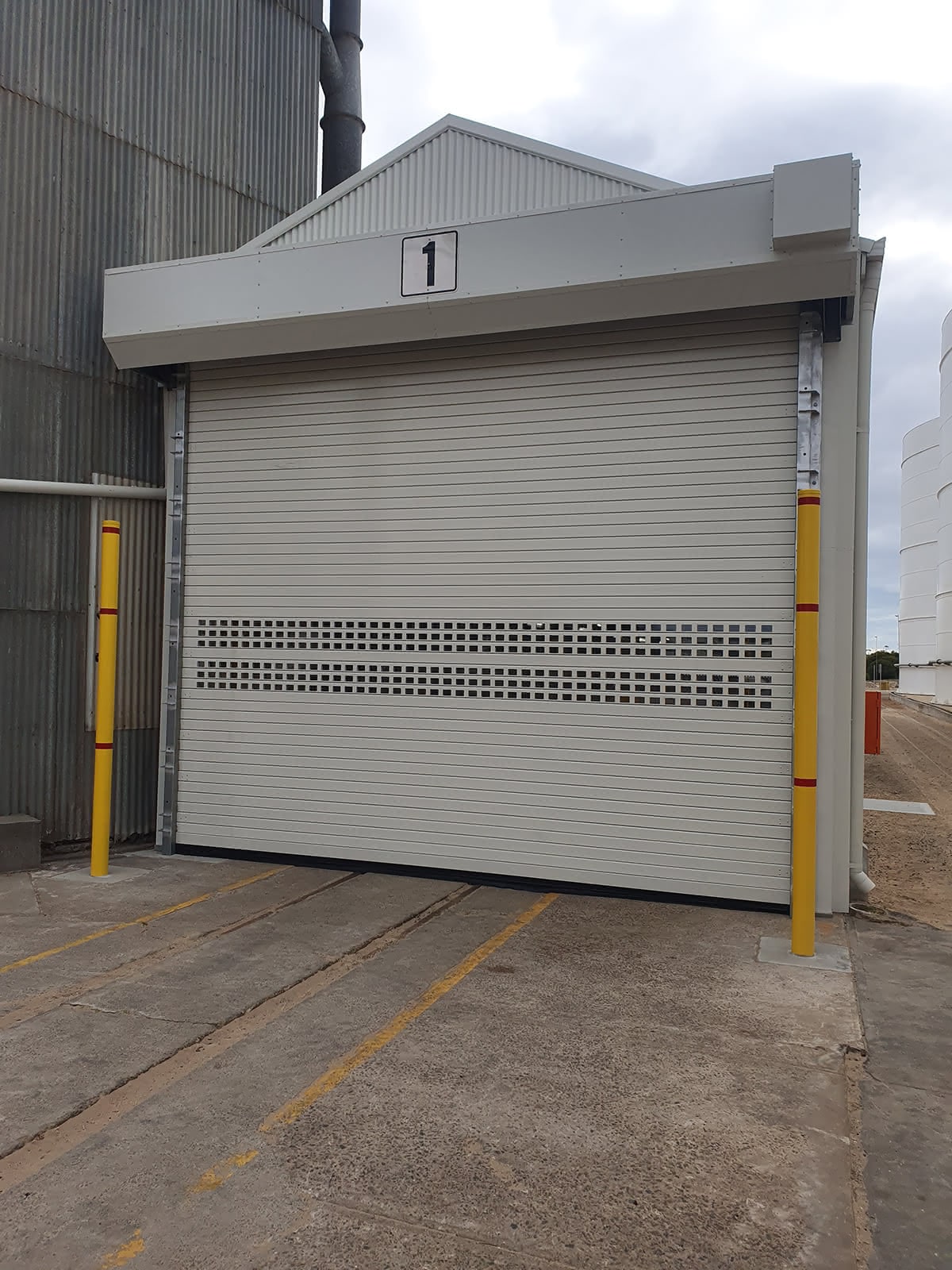

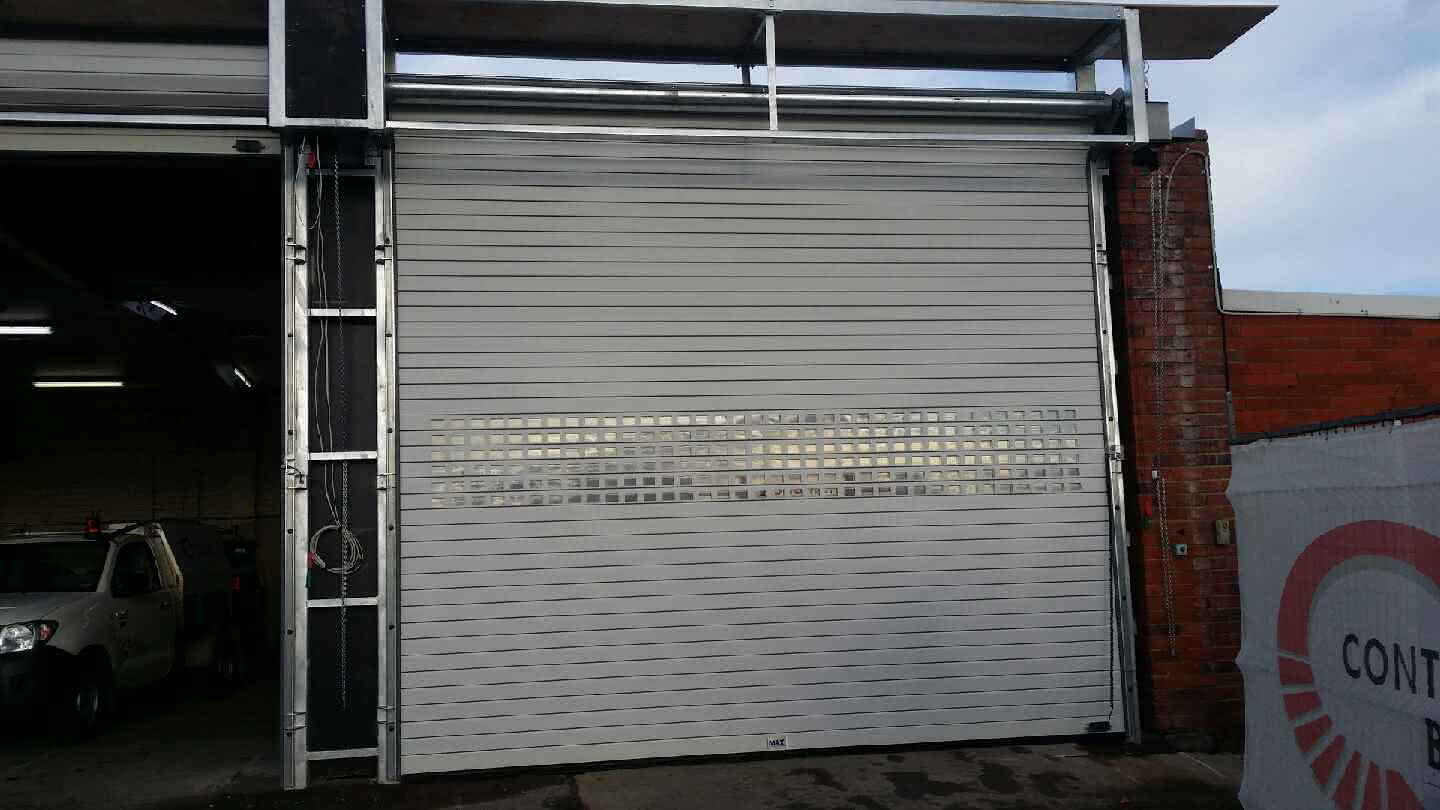

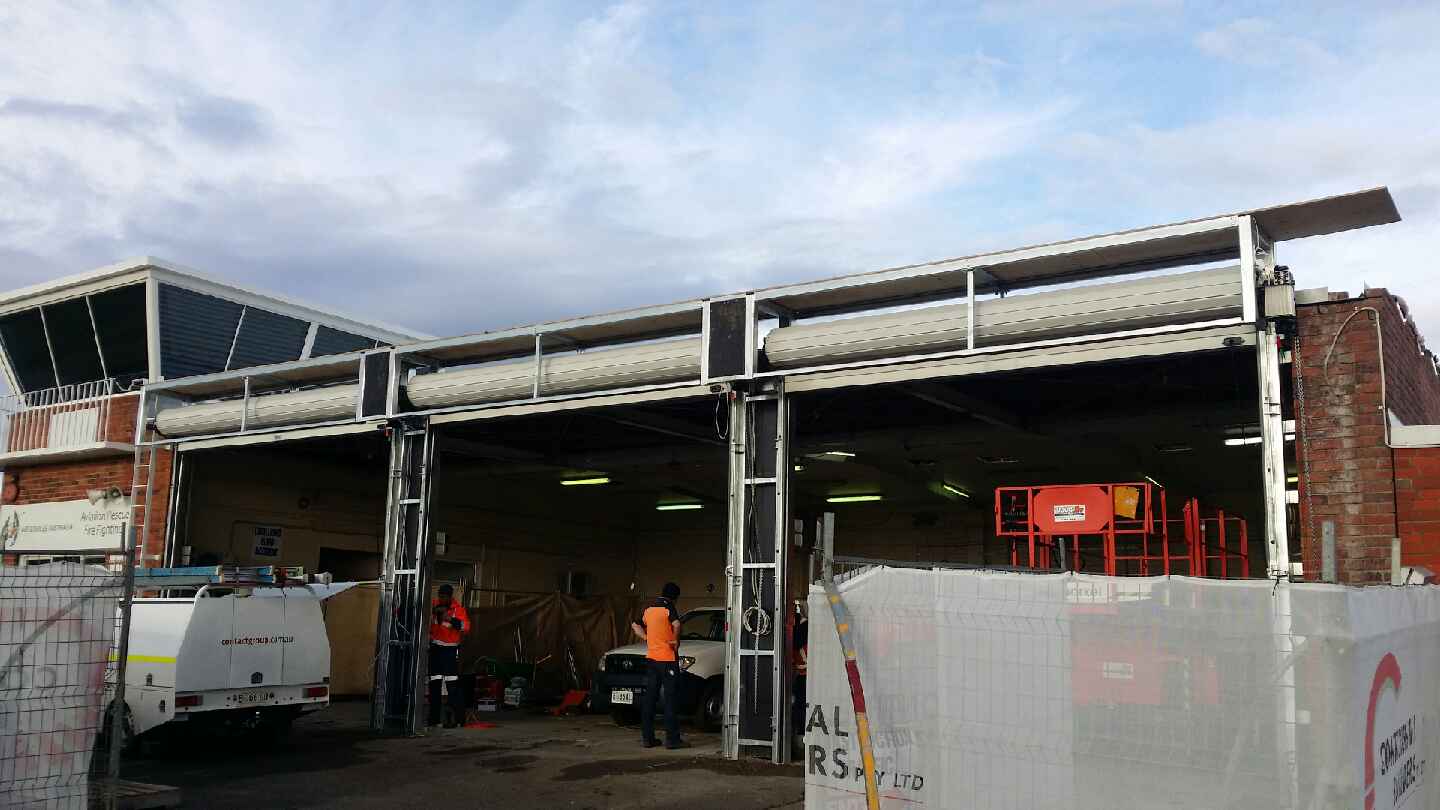

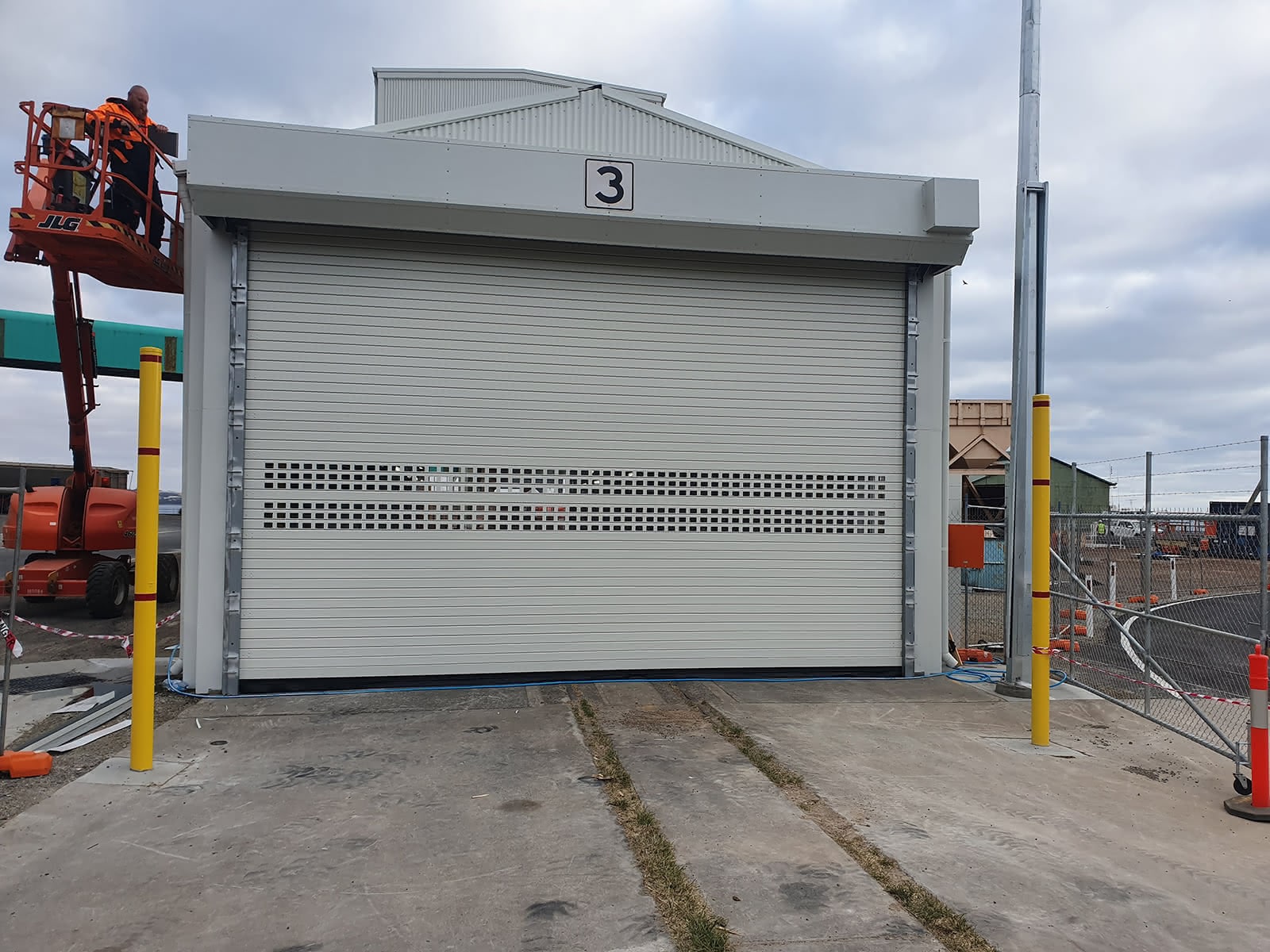

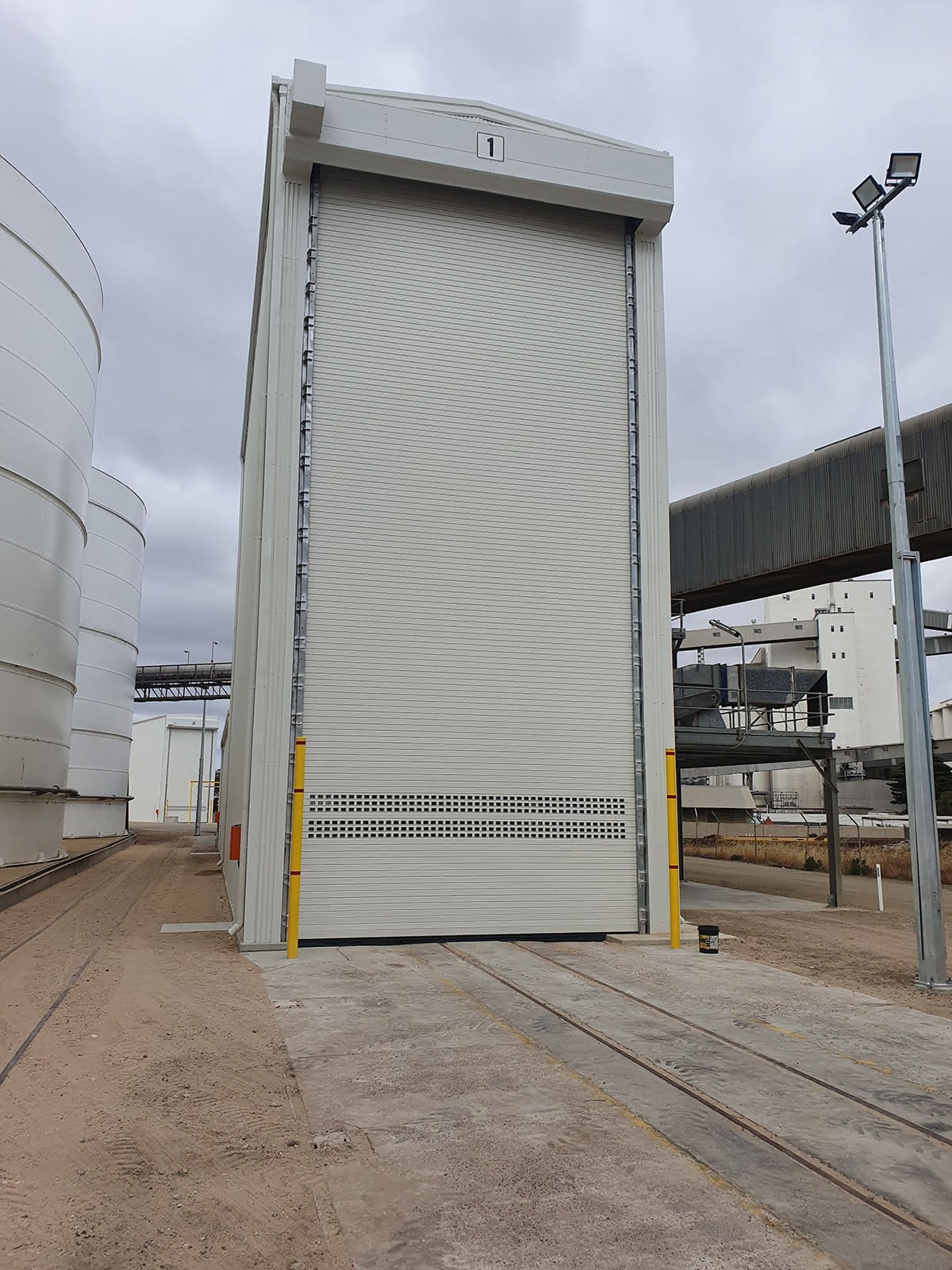

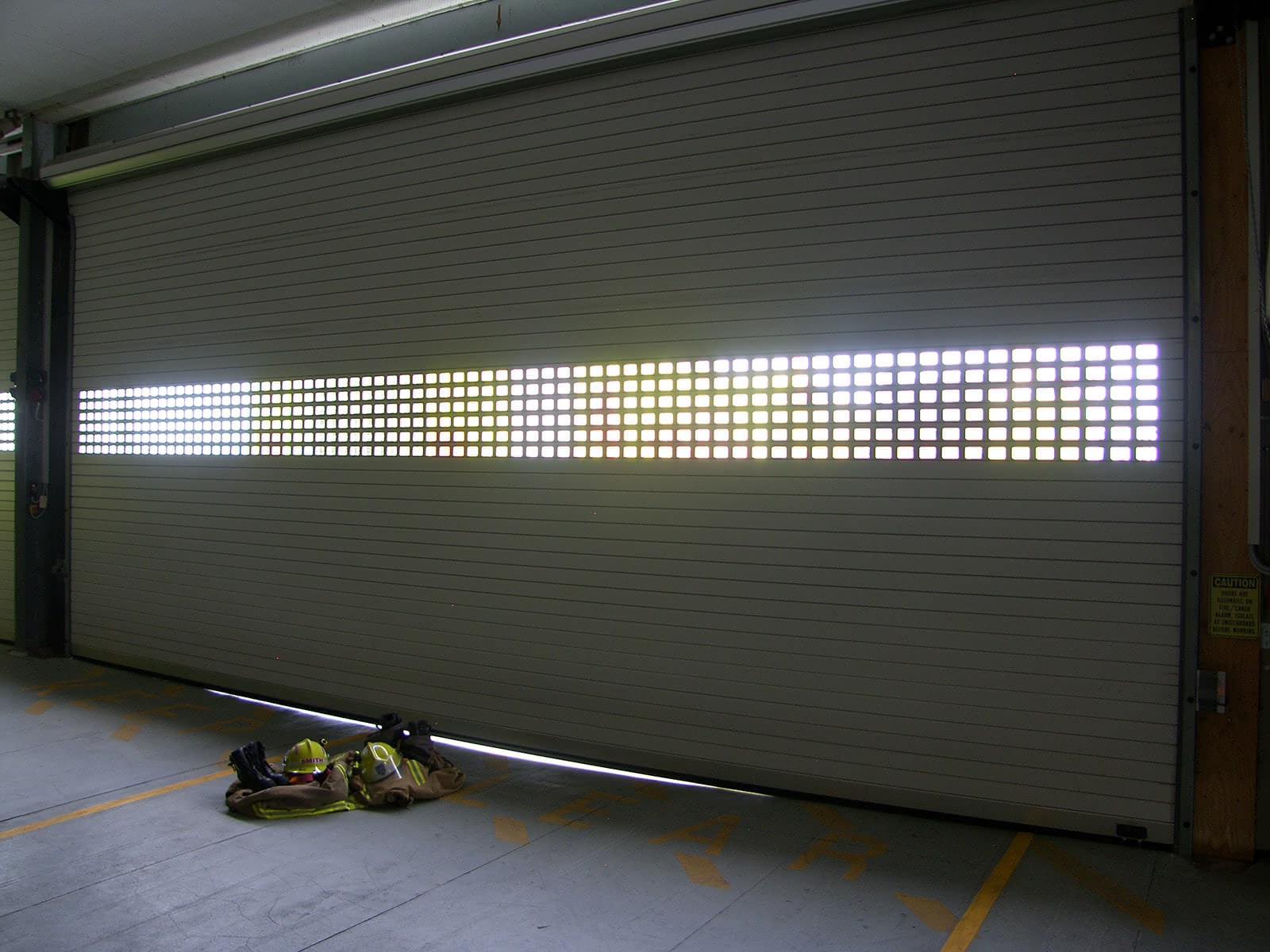

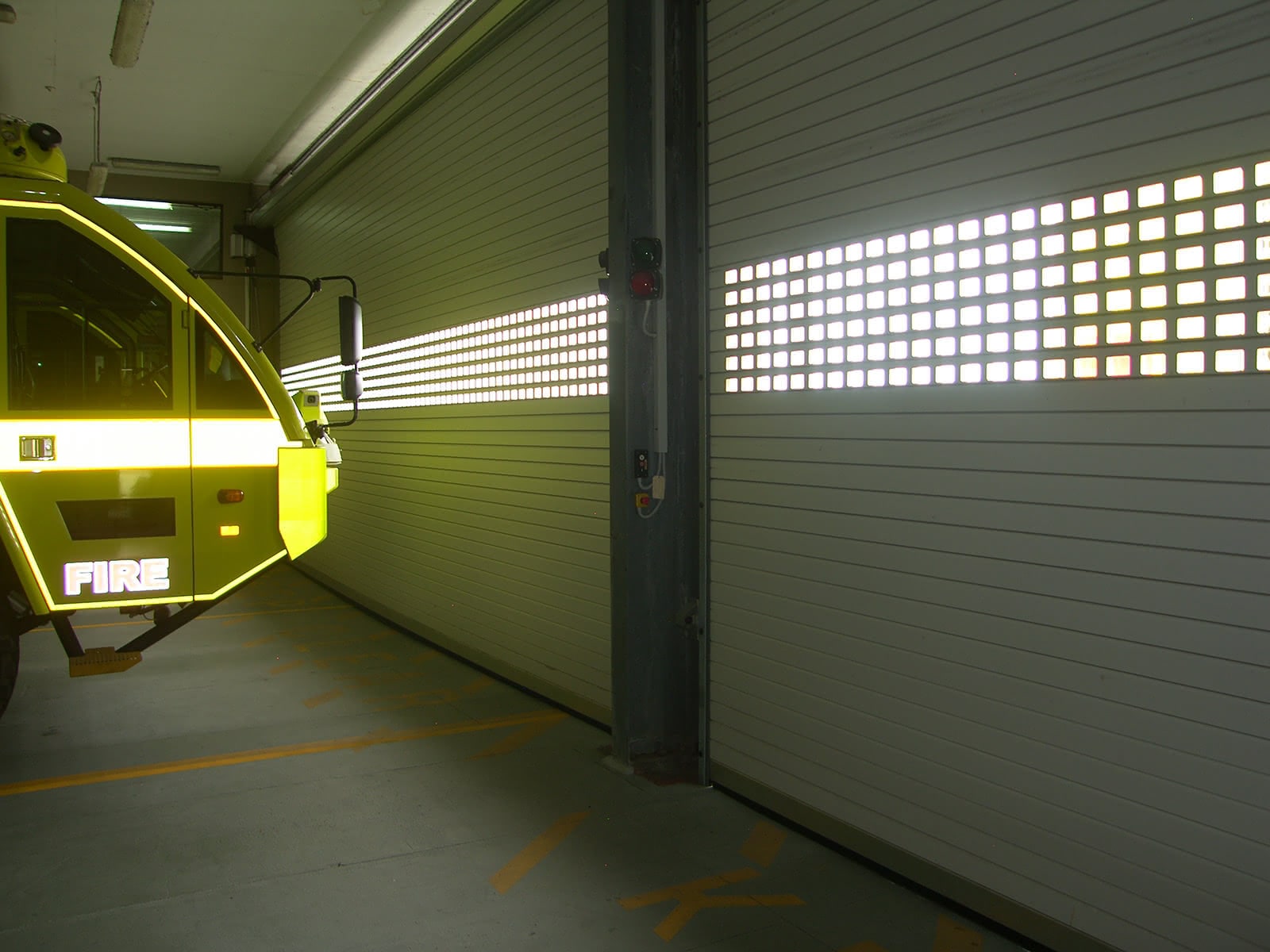

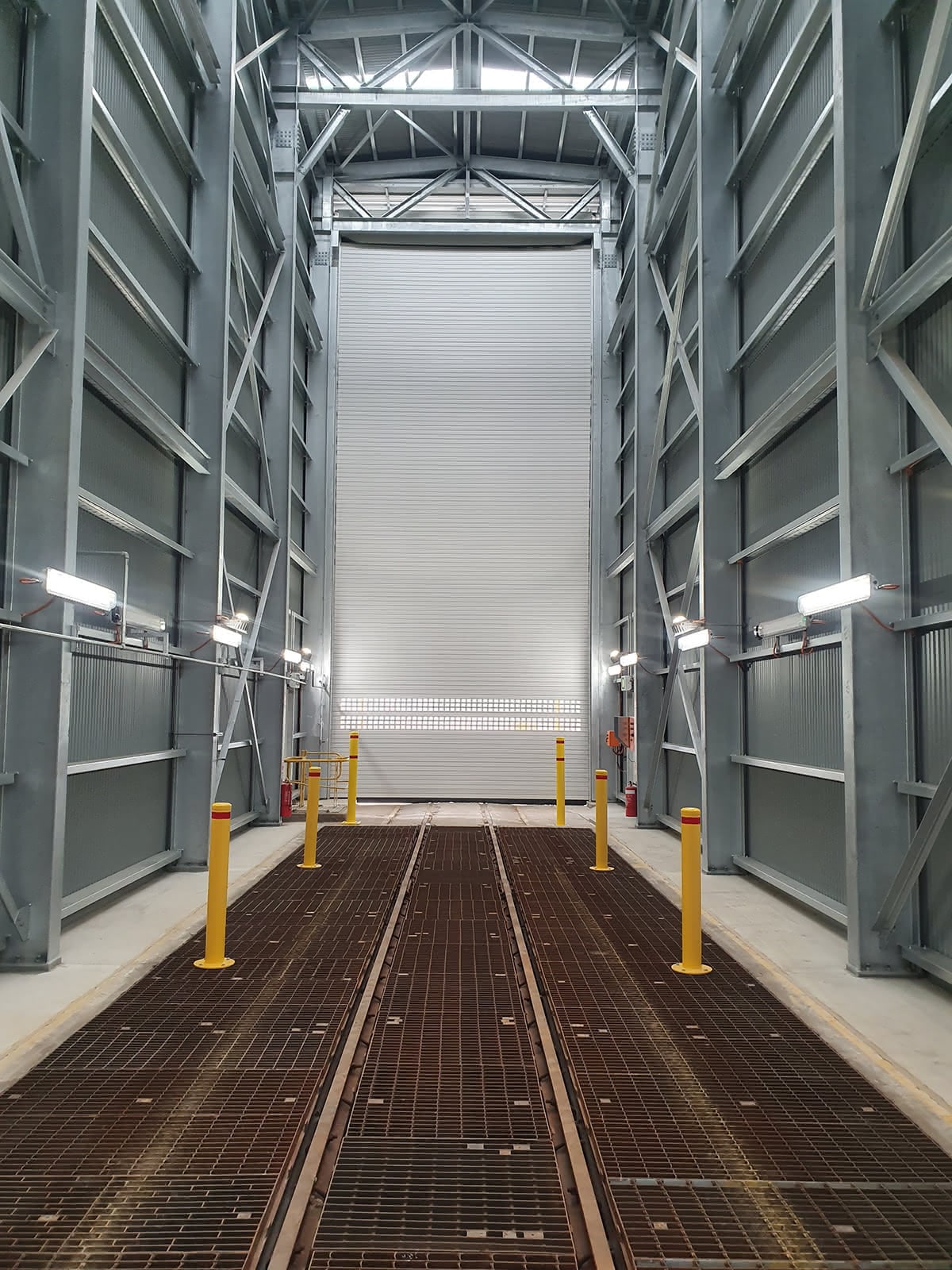

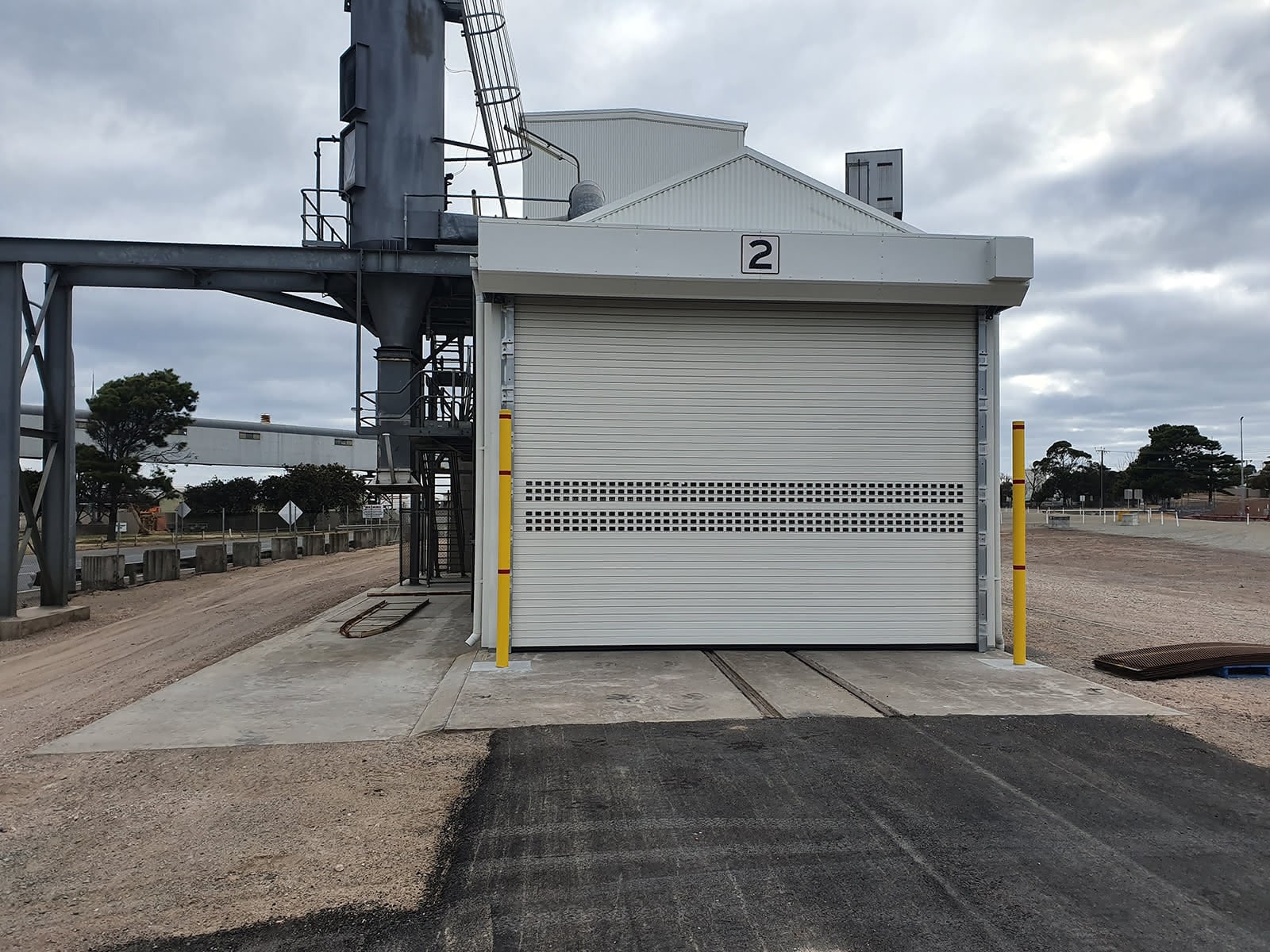

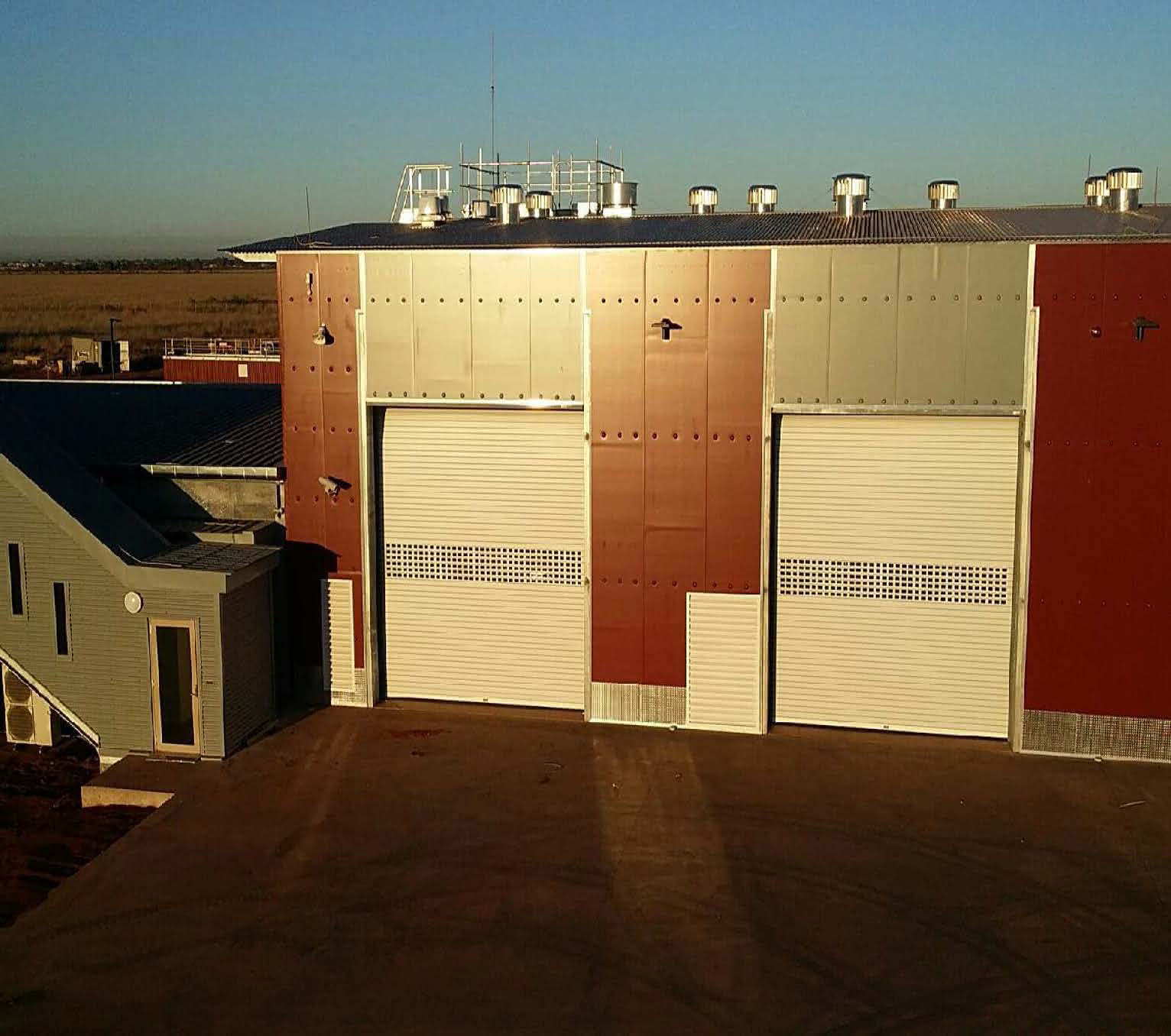

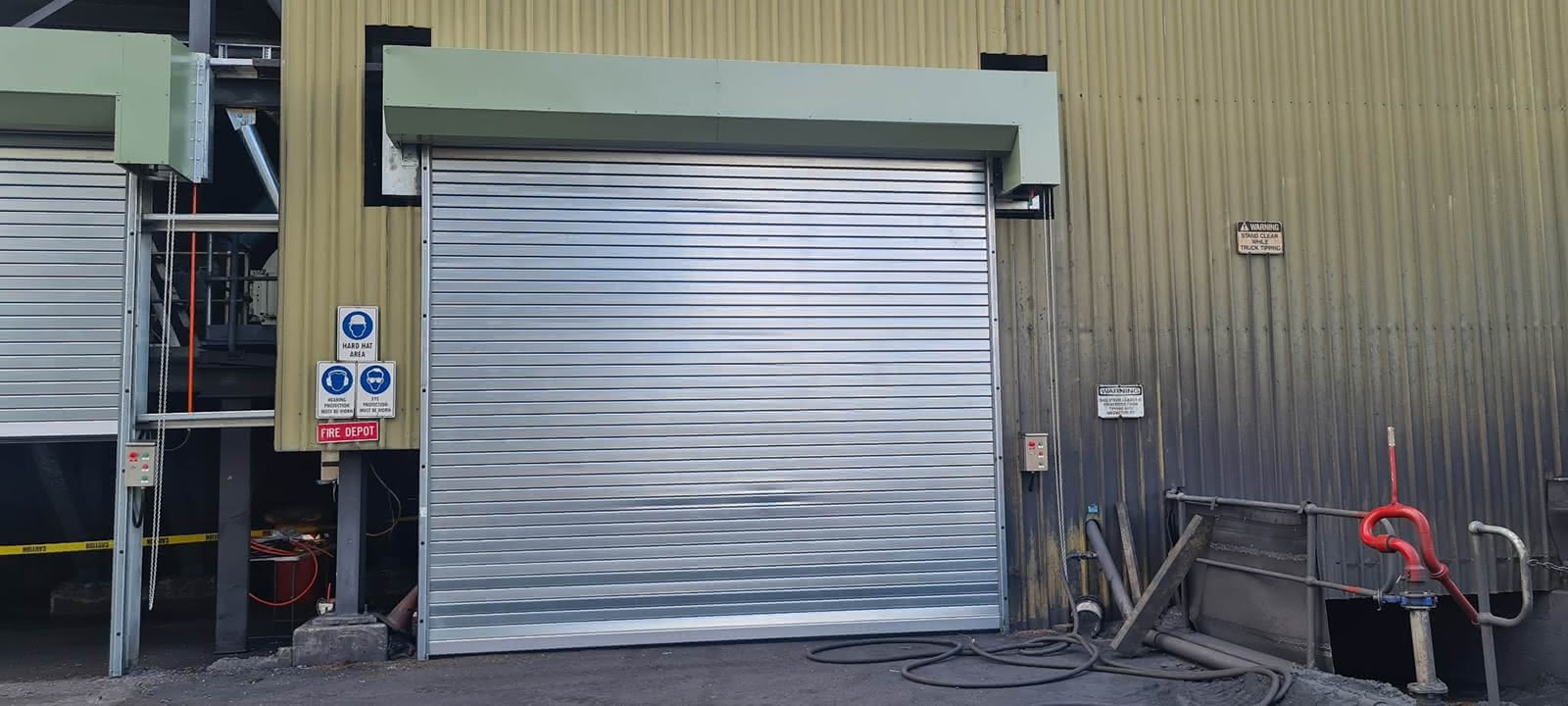

  • ShutterMAX® 100D – a heavy-duty solution focused on acoustic performance, combining sound reduction, security and equipment integration.
  • ShutterMAX® ISO-SL – a secure, high-speed solution for external applications, with insulated slats for temperature control and quieter operation.
Key Features
High Speed
Insulated
Thermal
Sensors Safety
Specifications Summary
Feature ShutterMAX® 95R ShutterMAX® 100D ShutterMAX® ISO SL
Application External /Internal External /Internal External
Max Width 6,000 mm 11,800 mm 6,000 mm
Max Height 6,000 mm 10,000 mm (other sizes upon request) 6,500 mm
Opening Speed 0.15 m/sec 0.15 m/sec Up to 1.70 m/sec
Closing Speed 0.15 m/sec 0.15 m/sec 0.70 m/sec

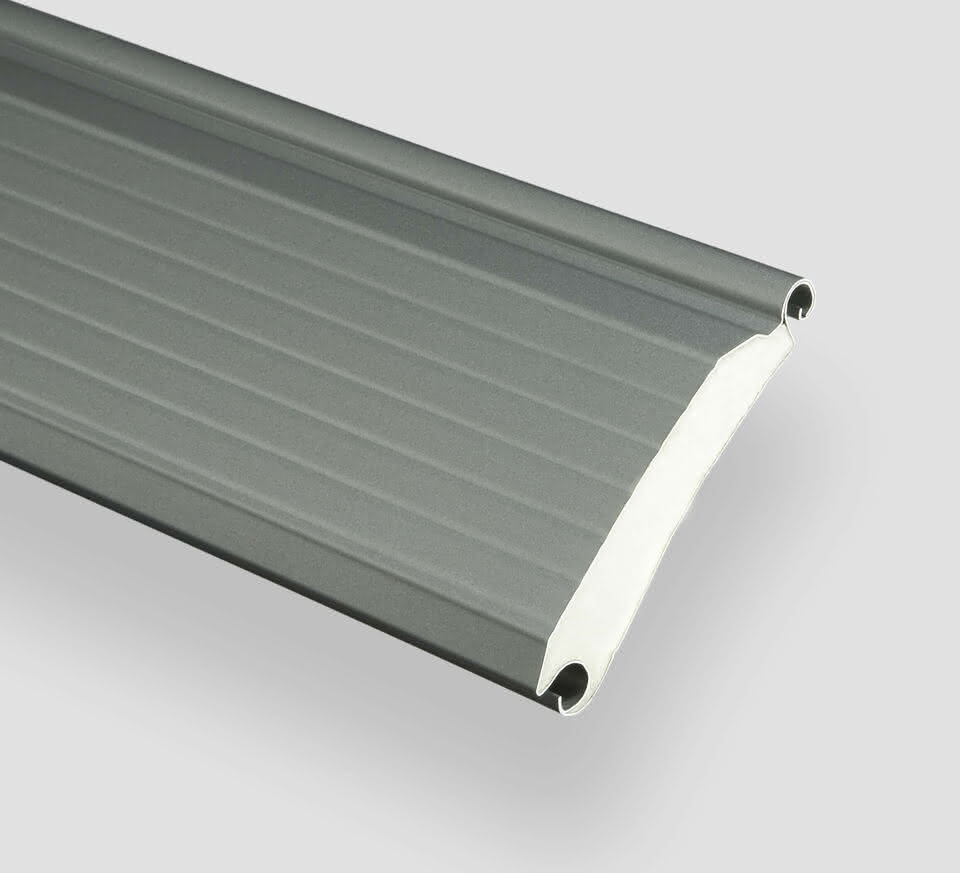

Curtain / Slats
  • Galvanised steel profile filled with PU foam – Std
  • Hardened PVC profile end guides
  • Colours available upon request – Opt
  • Window/Ventilation Profiles – Opt
  • Door Head Lintel and Bottom Profile seal – Std

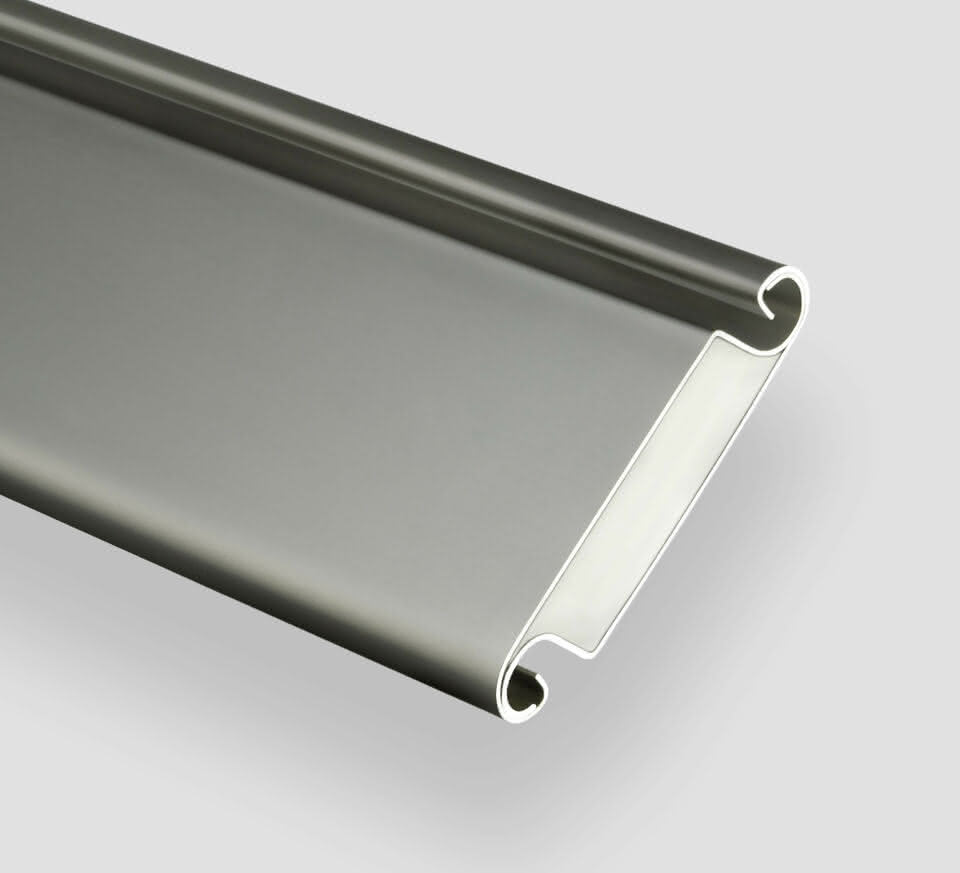

  • Galvanised steel profile filled with Rockwool – Std
  • Aluminium profile filled with Rockwool -Opt
  • Hardened PVC profile end guides
  • Colours available upon request – Opt
  • Window/Ventilation Profiles – Opt
  • Door Head Lintel and Bottom Profile seal – Std

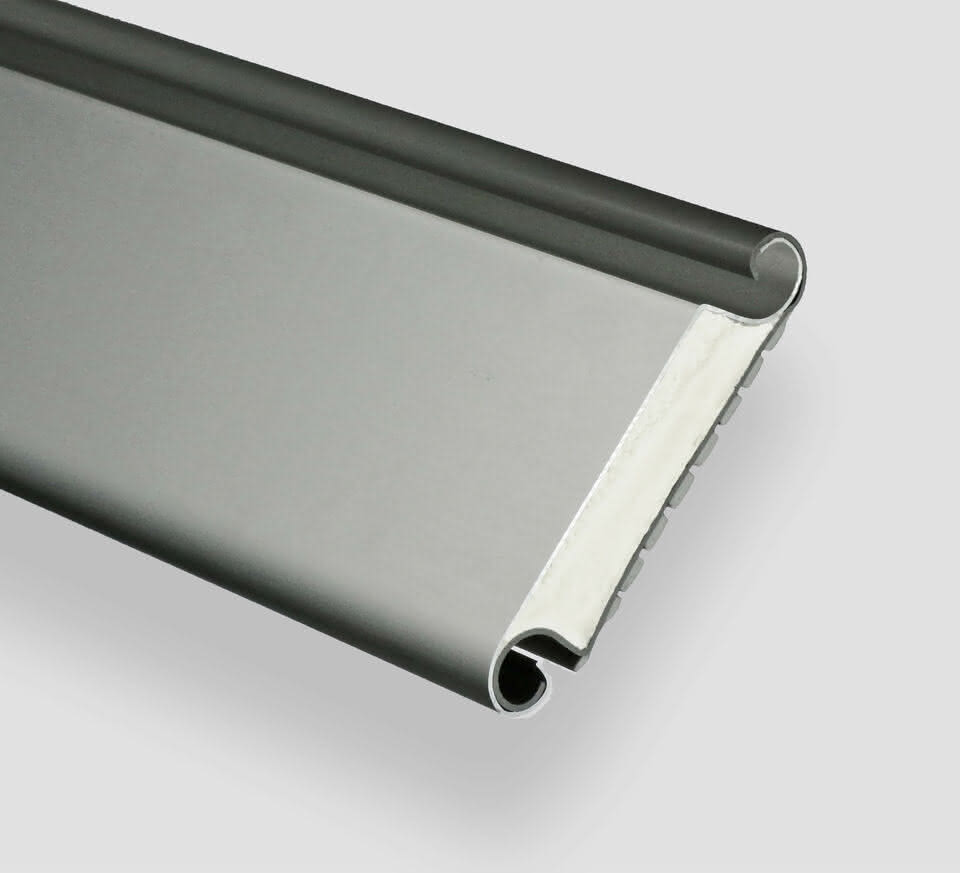

  • Anodised Aluminium external profile bonded to hardened PVC longitudinal profile filled with polyurenthane foam.
  • Surfmist (RAL9002) standard
  • Colours available upon request – Opt
  • Window/Ventilation Profiles – Opt
Top Roll Tube Galvanised steel /Springless Drum Galvanised steel /Springless Drum Galvanised steel /Springless Drum
Frame / Guides
  • Galvanised steel – Std
  • Powdercoated – Opt
  • PVC wear strip – Std
  • Lintel Rubber seal – Std
  • PVC wear strip with intergrated seal – Opt
  • Galvanised steel – Std
  • Powdercoated – Opt
  • PVC wear strip- Std
  • Lintel Rubber seal – Std
  • PVC wear strip with intergrated seal – Opt
  • Galvanised steel – Std
  • Powdercoated – Opt
Drive System GfA Safedrive® with intergrated safety brake & manual hauling chain GfA Safedrive® with intergrated safety brake & manual hauling chain GfA Safedive® with intergrated safety brake & soft start/soft stop
Safety
  • Safedrive intergrated brake – Std
  • Door-line Safety PE Beam – Opt
  • Door-line Safety Light Curtain (1800 mm active) – Opt
  • BottomProfile “Soft -touch” reversing edge – Opt
  • Emergency Stop Button – Std
  • Manual Chain Over-ride – Std
  • Safedrive intergrated brake – Std
  • Door-line Safety PE Beam – Opt
  • Manual Chain Over-ride – Std
  • Door-line Safety Light Curtain (1800 mm active) – Opt
  • BottomProfile “Soft -touch” reversing edge – Opt
  • Emergency Stop Button – Std
  • Safedrive intergrated brake – Std
  • Door-line Safety Light Curtain (1800 mm active) – Std
  • BottomProfile “Soft -touch” reversing edge – Opt
  • Emergency Stop Button – Std
  • Manual Chain Over-ride – Std
Thermal Insulation U= 3.47/R0.29 23 mm Profile U=4.4/R=0.23 U=0.875/R=1.14
Acoustic Performance 27 dB 36 dB – 41 dB with 2 x Door System 16 dB (calculated value-untested)
Wind Load Available: Gusts >700 Pa
(Class 3 EU EN 12424)
Higher wind loads
available upon request		 Available: Gusts >1000 Pa (Class 5 EN12424) Higher wind loads available upon request Available: Gusts >700 Pa (Class 3 EU EN 12424) Higher wind loads available upon request
Applications Warehouses, logistics hubs, manufacturing, commercial sites and cold chain logistics Warehouses, logistics hubs, manufacturing, commercial sites, auditorium Warehouses, logistics hubs, manufacturing, commercial sites, cold chain logistics
