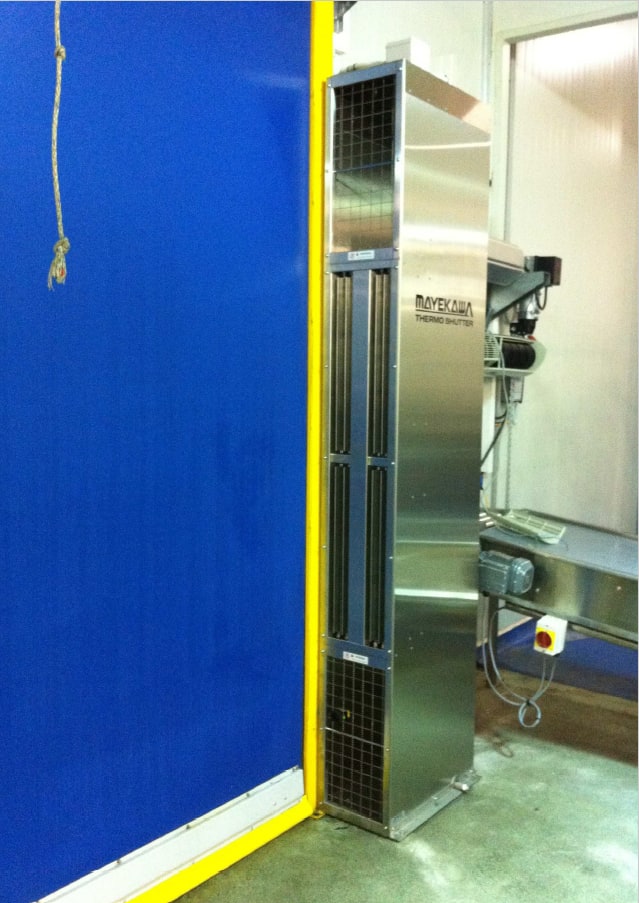

Thermoshutter
Horizontal Air Curtain for Cold Rooms and Freezers

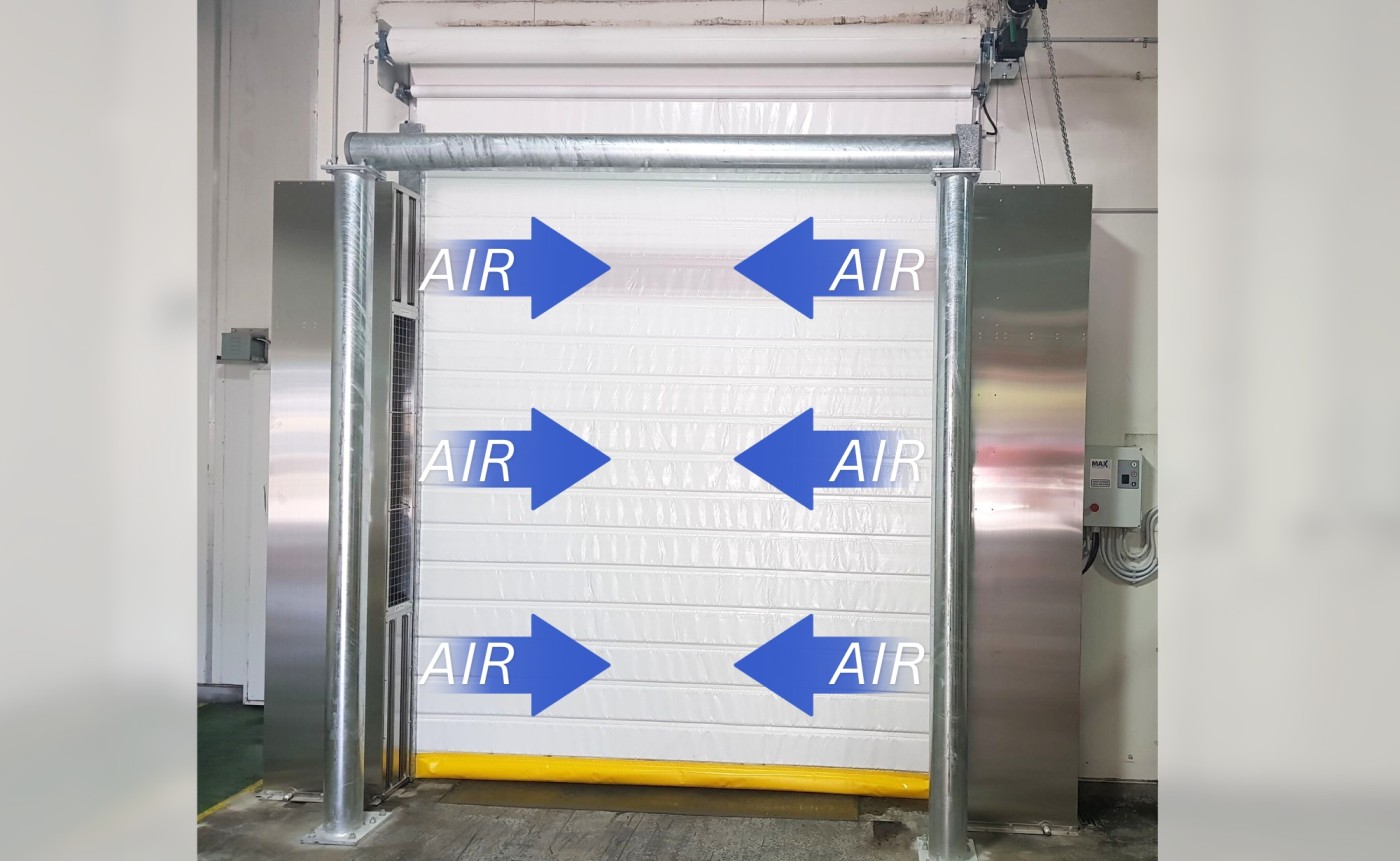

The Thermoshutter is a horizontal air curtain designed for cold rooms, industrial freezers and coolers. Unlike conventional single-direction air curtains, it delivers airflow from both sides, creating equalised pressure across the doorway.

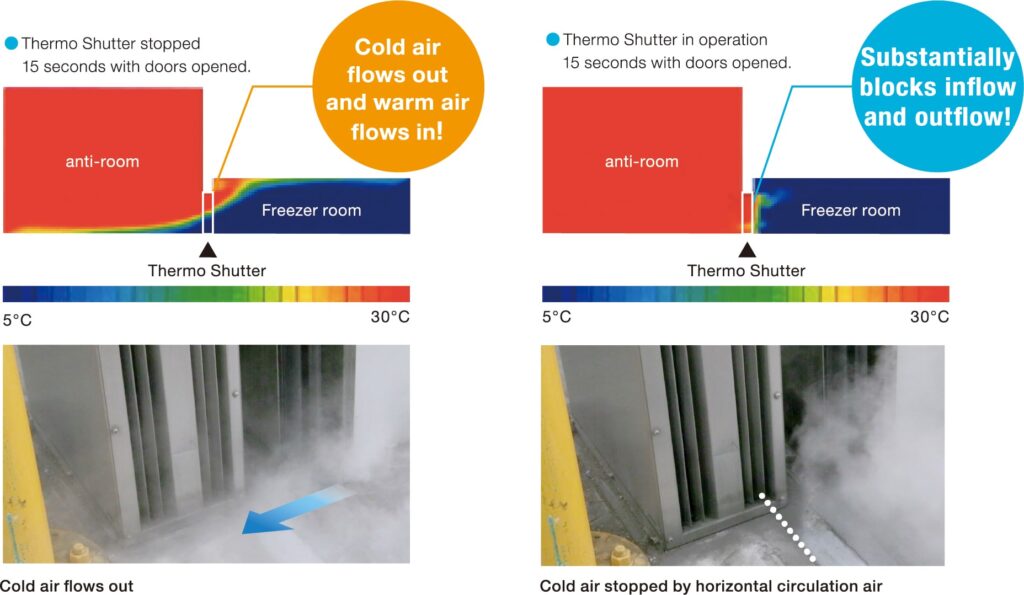

This balanced airflow forms a stronger barrier that helps reduce cold air leakage, improve energy efficiency, maintain hygienic storage conditions and prevent icy floors for safer operations.
Key Features
High Speed
Insulated
Thermal
Sensors Safety
Specifications Summary
| Parameter | Details |
|---|---|
| Application | Cold rooms, freezers, coolers |
| Door opening height | 2,000–5,000 mm (custom in 100 mm steps) (Other heights available upon request) |
| Door opening width (Max) | 3,000 mm |
| Panel/Body | Stainless steel (except fans) |
| Fans | 6–12, 75 W each |
| Power Supply | 240 V, single phase |
| Operating Range | -10 °C to +45 °C, up to 90% humidity |
| Accessories | Control panel (Std) Door interlocking (Std) Optional cover for outward-opening chillers |
Additional notes
- Design and specifications subject to change without notice.
- Available in stainless steel for durability.
- Airflow direction adjustable via louvers.
- Variable Speed Drive (VSD) as standard.
